Installing Switch For Air Cushion

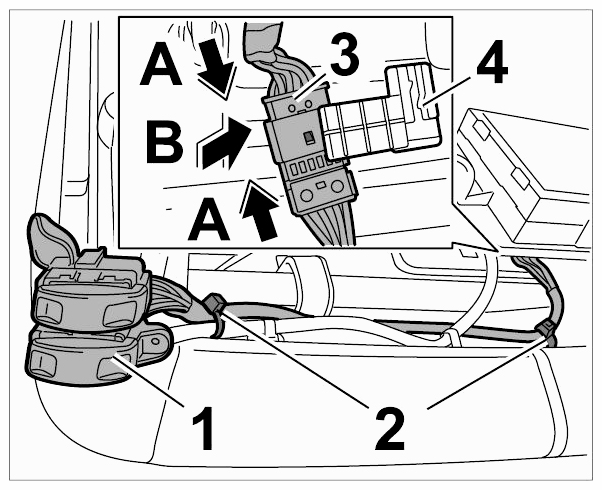

- Push plug connection -3-
together -arrows A-
until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push plug connection -3-
into holder -4-
(-arrow B-
).
- Lay wire harness of switch for air cushion -1-
and secure with two new tie-wraps -2-
.
