Undoing Seat Screws At Front

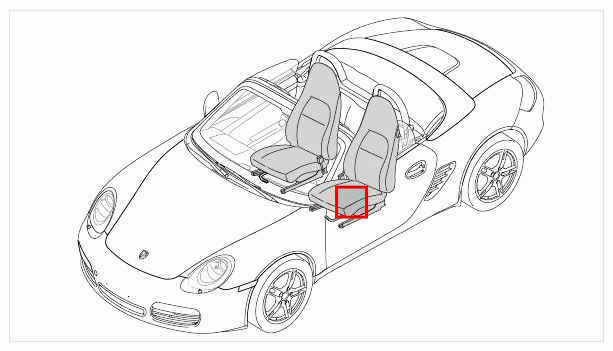

Fig 1: Identifying Front Seat Installation Position
G09592028Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Move seat -1-  to its rear limit position and undo the front fastening screws -2-  from the right and left seat rails -3-  .

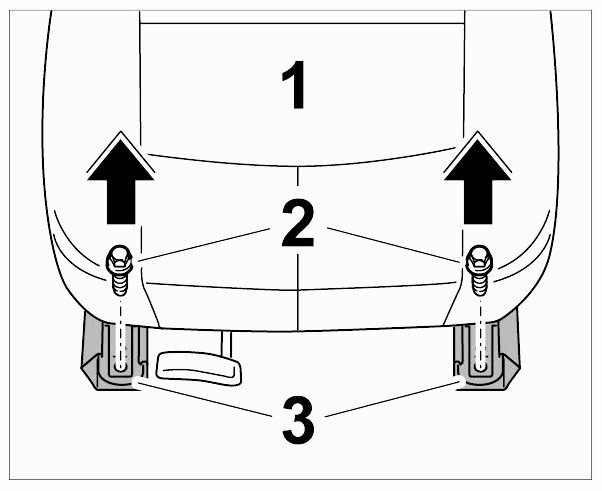

    Fig 2: Removing Front Seat Screws
    G09592029Courtesy of PORSCHE CARS NORTH AMERICA, INC.
