Locking Central Plug

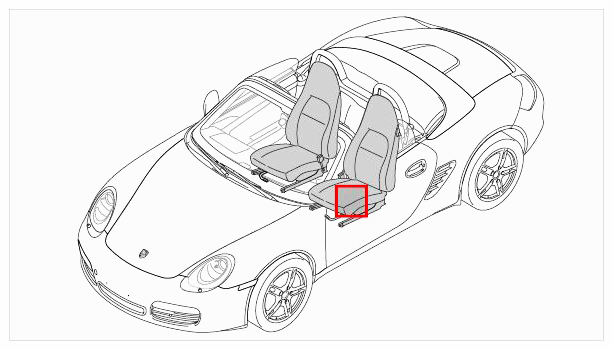

Fig 1: Identifying Front Seat Installation Position
G09592047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Join the plug connection -1- -Arrow A-  , press in plug connector locking device -2-  on the side -Arrow B-  .

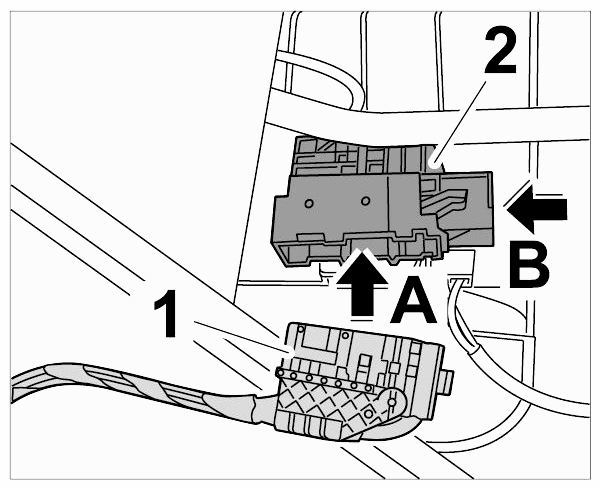

    Fig 2: Locking Central Plug
    G09592048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
