Installing Shelf

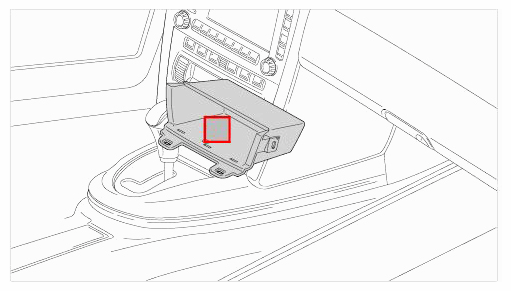

Fig 1: Centre Console Cover Shelf Location
G09591282Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position shelf -2-  and screw down using the fastening screws -1-  .
  2. Insert the mat -3-  .

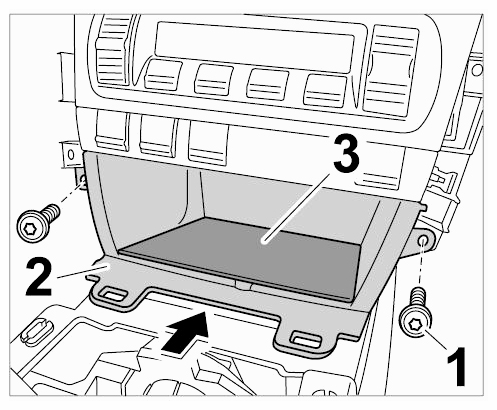

    3. Fig 2: Installing Shelf
    G09591283Courtesy of PORSCHE CARS NORTH AMERICA, INC.
