Removing Cover Strip

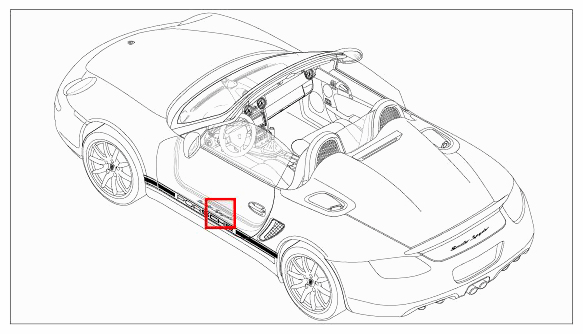

Fig 1: Identifying Cover Strip Installation Position (Logo)
G09591238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Heat the side member -1-  slightly in the area of the logo -2-  using the hot-air blower Nr.155-1 Pos.2 -3-  (-arrows A-  ) and pull off the logo -arrow B-  .

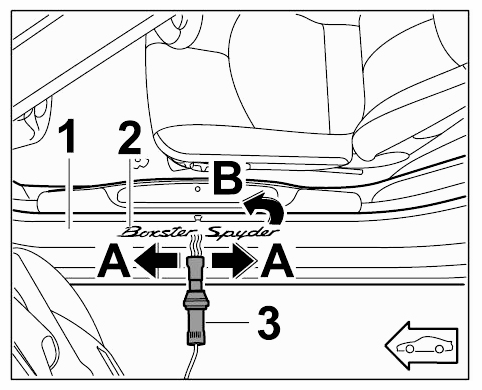

    Fig 2: Removing Cover Strip (Logo)
    G09591239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen and remove adhesive residues on the side member using cleaning agent.
