Installing Hydraulic Pump

  1. Install hydraulic pump.
    1. 1.1. Install hydraulic pump.

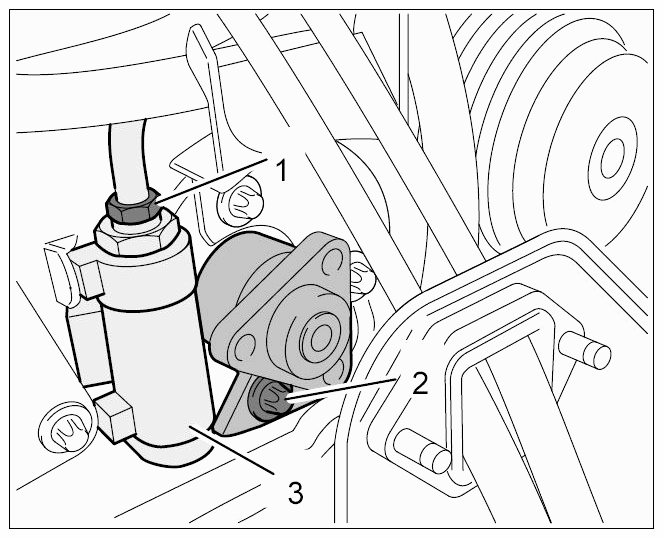

      Fig 1: Identifying Hydraulic Pump With Screws
      G09588079Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 1.1.1. Fit the hydraulic pump -3-  and reservoir assembly and screw in and tighten M8 x 30 screw -2-  on the hydraulic pump -3-  .
      2. 1.1.2. Screw in and tighten pressure line -1-  on the hydraulic pump -3-  . Counter at the connection piece (a/f 27) when tightening the pressure line -1-  (a/f 16).

        Tightening torque: 35 Nm (26 ftlb.)

    2. 1.2. Screw in and tighten screw -1-  on holder for hydraulic pump.

      Tightening torque: 10 Nm (7.5 ftlb.)

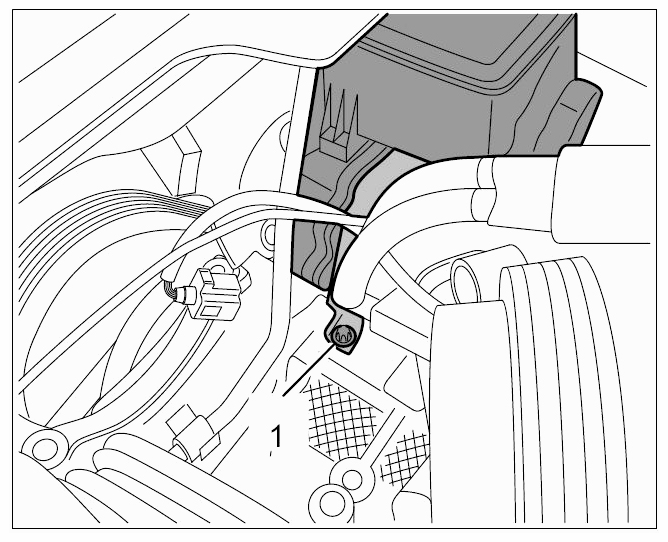

      Fig 2: Identifying Holder For Hydraulic Pump
      G09588080Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 1.3. Remove stopper -1-  .

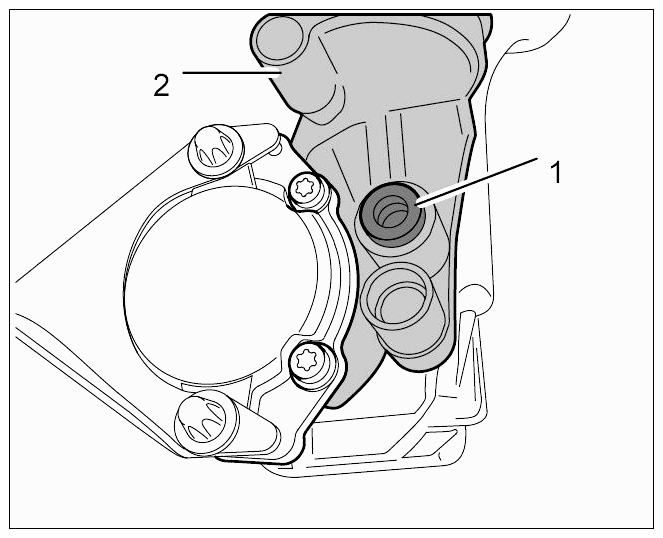

      Fig 3: Identifying Stopper
      G09588081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 1.4. Connect return line to the reservoir for the hydraulic pump.

      Fit and press in return line on the hydraulic pump reservoir -arrow-  .

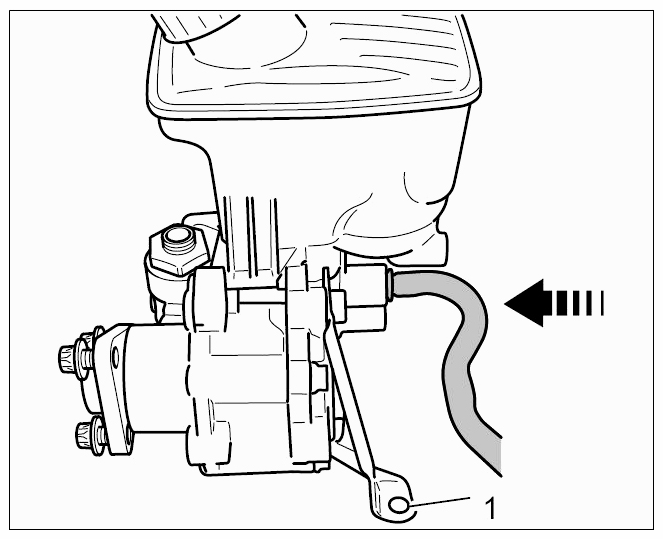

      Fig 4: Connecting Return Line To Reservoir For Hydraulic Pump
      G09588082Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide in and fit air conditioning compressor.
    1. 2.1. Fit air conditioning compressor.

      Guide the air-conditioning lines -2-  towards the cut-out on the right -arrow-  in such a way that the air-conditioning lines -2-  are not strained. Swivel air conditioning compressor -1-  forward and position it correctly.

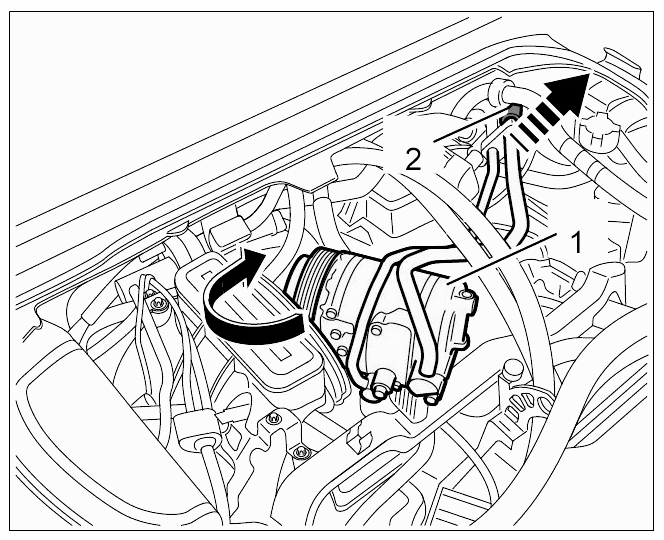

      Fig 5: Removing Air Conditioning Compressor
      G09588083Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Fit air conditioning compressor.
      1. Air conditioning compressor
      2. Screw, M8 x 170
      3. Screw, M8 x 90
      4. Holder

      Fit holder -4-  and screw in and tighten screws -2, 3-  .

      Tightening torque: 23 Nm (17 ftlb.)

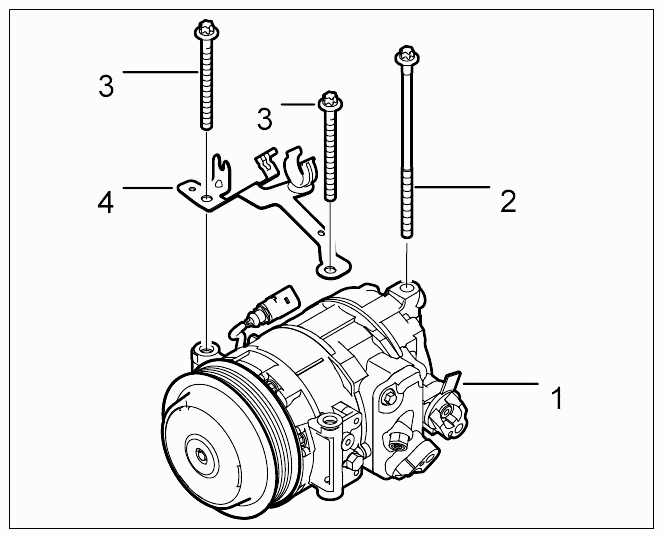

      Fig 6: Identifying Air Conditioning Compressor Components
      G09588084Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Fit B+ box on the air conditioning compressor.

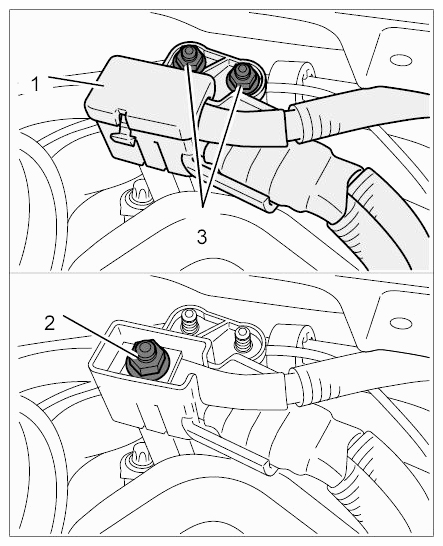

      Fig 7: Identifying Air Conditioning Compressor B+ Box Screws
      G09588085Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 2.3.1. Remove B+ box and fit it on the air-conditioning compressor holder. Screw on and tighten nuts -3-  on the B+ box.
      2. 2.3.2. Connect B+ cable and screw on and tighten M8 nut -2-  . Close lid -1-  of B+ box.
    4. 2.4. Connect electric cable plug to the air conditioning compressor.

      Press connector housing into the holder -arrow-  and connect electric cable plug -1-  .

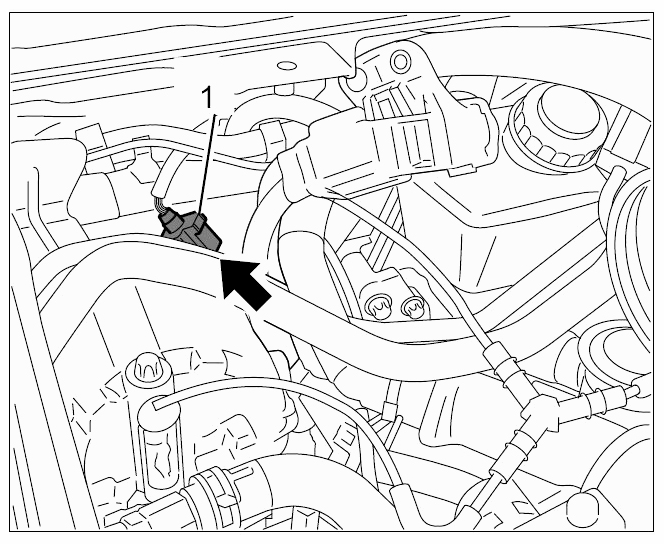

      Fig 8: Identifying Electric Cable Plug For Compressor
      G09588086Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    5. 2.5. Secure hydraulic pump.

      Fit holder with fuel hoses -2-  to the hydraulic pump -3-  and screw in two M8 x 30 screws -1-  . Tighten the screws -1-  and the three lower fastening screws (M8 x 30).

      Tightening torque: 23 Nm (17 ftlb.)

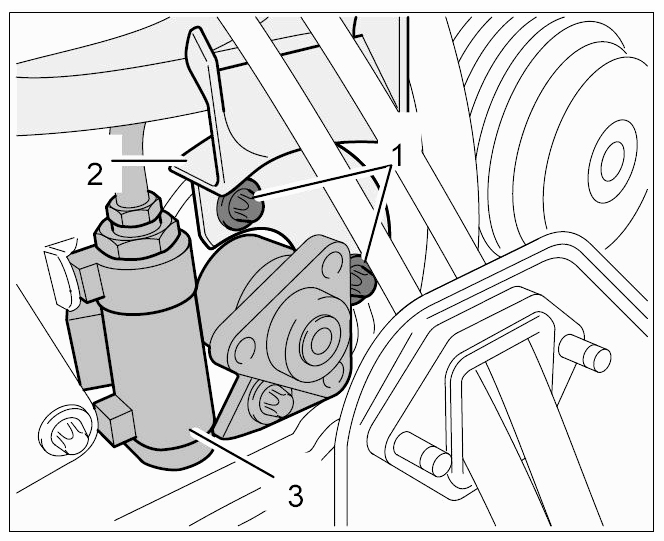

      Fig 9: Identifying Hydraulic Pump With Screws
      G09588087Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect plug-in couplings for the steering hydraulic system.
    1. 3.1. Connect the plug-in couplings for the steering hydraulic system (pressure and return lines) on the underbody if necessary (if you have not already done so after draining the fluid.

      Make sure that the hydraulic line connections are not confused and are engaged correctly.

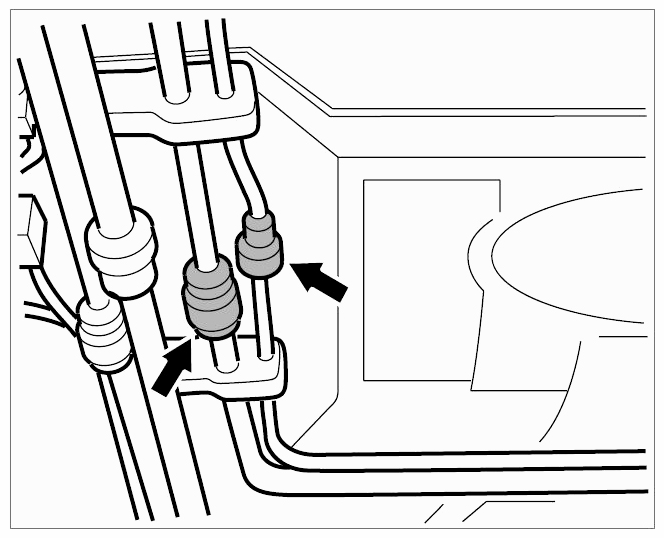

      Fig 10: Locating Plug-In Couplings For Steering Hydraulic System
      G09588088Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Install underbody panelling at the left side.

      Replace nuts and screws -2, 3-.

      Tighten nuts and screws -2, 3-  .

      Nuts

      Tightening torque: 5 Nm (3.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

      Screws

      Tightening torque: 2 Nm (1.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

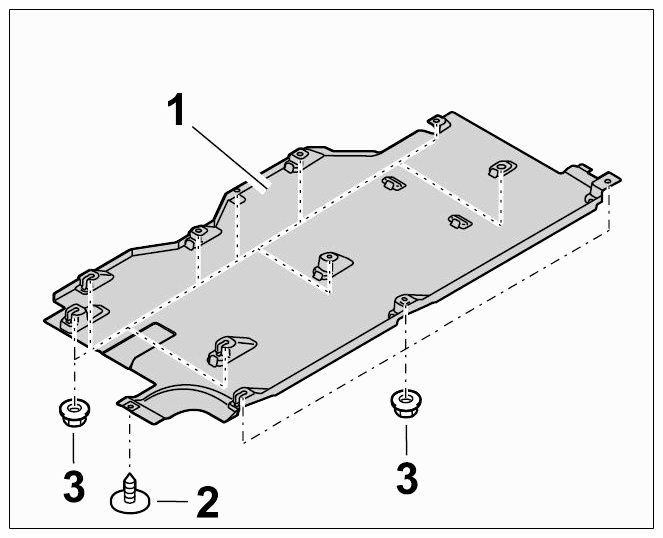

      Fig 11: Identifying Side Cover With Screws
      G09588089Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Install rear underbody panelling.

      Replace screws -1-.

      Replace nuts -2-.

      Tighten screws.

      Tightening torque: 2 Nm (1.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

      Tighten nuts.

      Tightening torque: 5 Nm (3.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

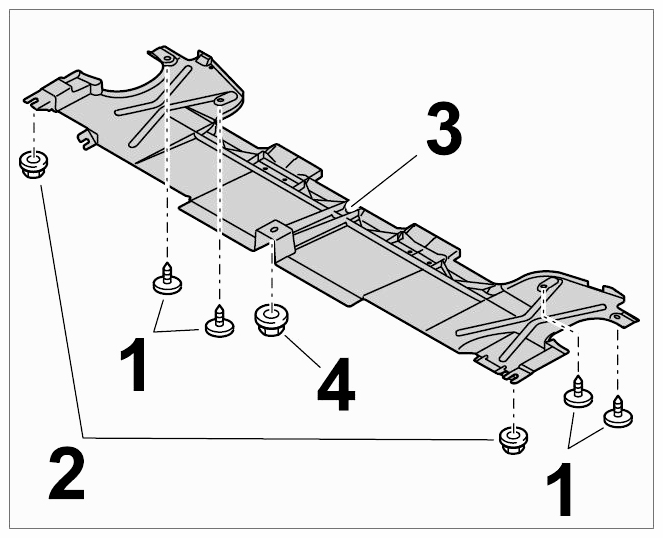

      Fig 12: Identifying Cover For Underbody
      G09588090Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install pulley and tighten the drive belt.

    137819 REMOVING AND INSTALLING DRIVE BELT .

    1. 4.1. Insert pulley and fit M8 screws on the pulley.

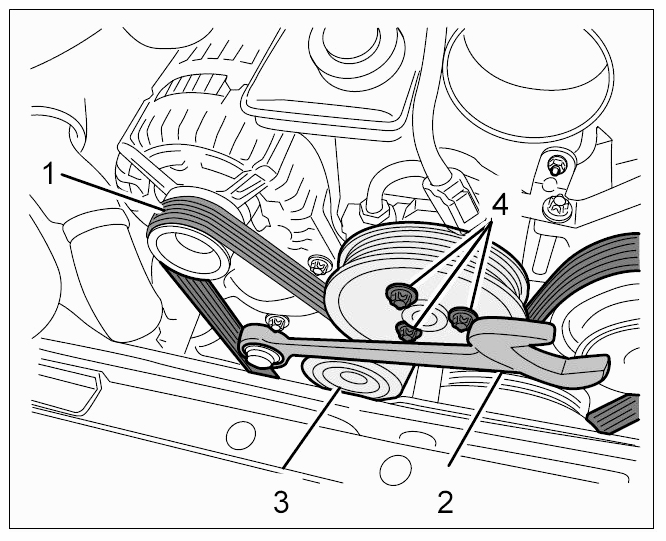

      Fig 13: Tightening Drive Belt
      G09588091Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 4.2. Turn the tensioner -3-  clockwise at the hexagon (a/f 30) using a ring wrench -2-  and fit the belt -1-  .
    3. 4.3. Allow the tensioner to slide back to its initial position.
    4. 4.4. Tighten screws -4-  on the pulley.

    Tightening torque: 23 Nm (17 ftlb.)

  5. Install engine vent hose.
  1. 5.1. Connect the engine vent hose -1-  at the oil filler neck -4-  and on cylinder bank 4-6 -5-  .

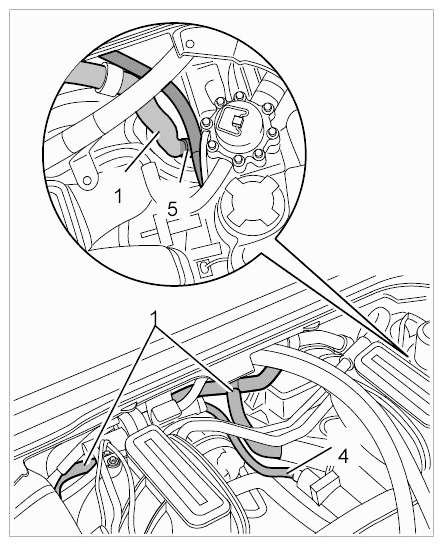

    Fig 14: Identifying Engine Vent Hose With Clamp
    G09588092Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 5.2. Fit and engage the engine vent hose -1-  on the engine vent pipe -2-  .

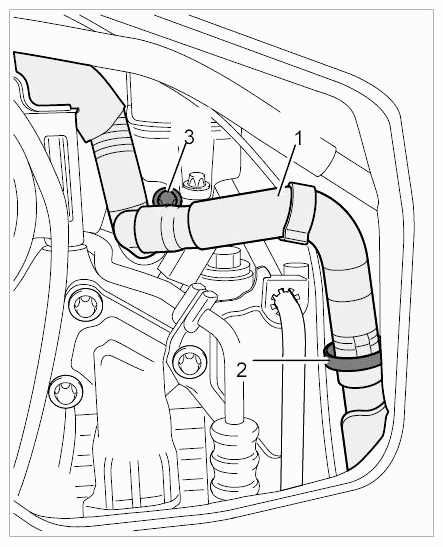

    Fig 15: Identifying Engine Vent Hose With Clamp
    G09588093Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. 5.3. Insert engine vent hose -1-  into the clip holder.
  4. 5.4. Insert engine vent hose -1-  into the oil separator housing and screw in and tighten the screw -3-  .

    Tightening torque: 10 Nm (7.5 ftlb.)
