Removing Clutch
WARNING: This page is about a different variant/trim than selected.
- Counter at the flywheel.

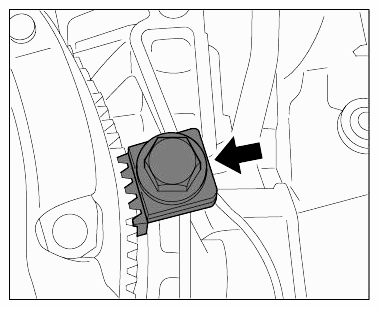

Secure the toothed segment 9538/1 to the crankcase using an M12 x 50 hexagon-head bolt.
Information
The toothed segment 9538/1 must be bored to Ø 15 mm to guarantee a perfect fit and to avoid damaging the thread in the crankcase.
Information
To avoid deforming the clutch pressure plate, always loosen fastening screws in at least five steps and in diagonally opposite sequence.
- Detach thrust plate.
- Remove thrust plate and drive plate.
