Installing Engine Carrier

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

→ Support the engine with the prescribed tool.

1. Check that the engine is supported correctly.
2. Install engine carrier bracket -1-  .
   1. 2.1. Position the bracket on the engine.
   2. 2.2. Screw in three hexagon-head bolts (a/f 16) -3 to 5-  .
   3. 2.3. Fit one M10 x 35 hexagon-head bolt (a/f 16) -2-  through the maintenance opening in the passenger compartment.
   4. 2.4. Fit hexagon-head bolts (a/f 16) -2 to 5-  uniformly and tighten to the prescribed torque.

      → Tightening torque: 65 Nm (48 ftlb.)

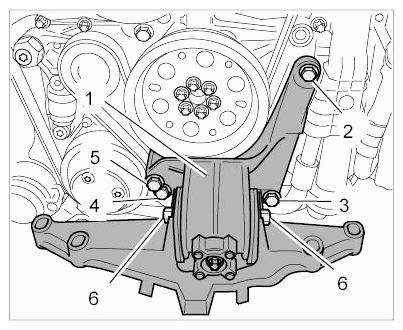

      Fig 1: Identifying Engine Carrier And Bolts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Engine carrier
      2. Hexagon-head bolt, M10 x 35
      3. Hexagon-head bolt, M10 x 65
      4. Hexagon-head bolt, M10 x 115
      5. Hexagon-head bolt, M10 x 135
      6. Hexagon-head bolt, M10 x 115 and M10 collar nut on engine mounting
3. Install lower part of engine carrier. Observe direction of travel arrow -1-  on the component.

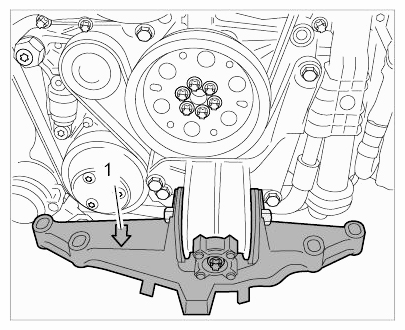

   Fig 2: Installing Lower Part Of Engine Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Fit lower part on the engine mounting. Slide hexagon-head bolt (M10 x 115, a/f 18) through from the right (in direction of travel) and fit M10 collar nut (a/f 18).
   2. 3.2. As a positioning aid, slide a long M10 screw or a mandrel with a diameter of 10 mm through at the through-hole -arrow-  in the lower part of the engine carrier.

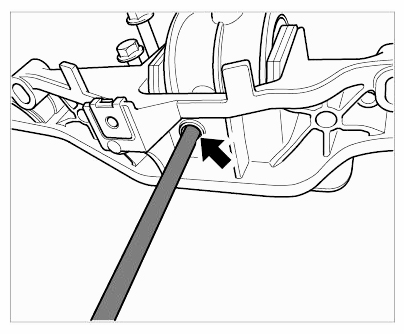

      Fig 3: Positioning Aid For Lower Part Of Engine Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Insert the mandrel or screw into the bore on the engine mounting -arrow-  .

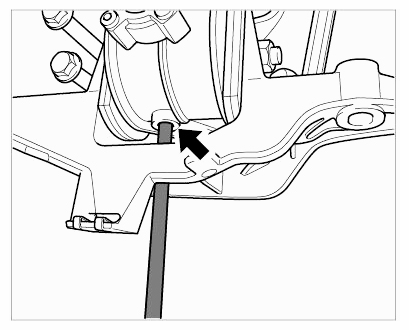

      Fig 4: Inserting Mandrel And Screw Into Bore On Engine Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 3.3. Tighten the collar nut on the engine mounting and counter at the hexagon-head bolt. Get a second person to hold the positioning aid securely.

      → Tightening torque: 120 Nm (89 ftlb.)

   4. 3.4. Lift up the engine using transmission jack V.A.G. 1383 A WE 1082  until the lower part of the engine carrier is touching the body.
   5. 3.5. Screw four M10 collar nuts -2-  onto the threaded bolts -3-  .
   6. 3.6. Tighten collar nuts to the specified torque.

      → Tightening torque: 65 Nm (48 ftlb.)

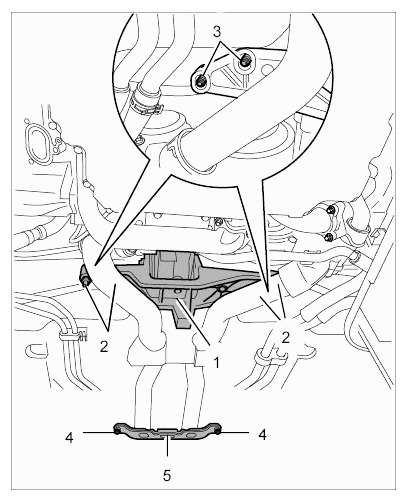

      Fig 5: Identifying Engine Carrier And Holder For Coolant Pipes

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit holder for coolant pipes -5-  using two M6 hexagon nuts -4-  .

   → Tightening torque: 10 Nm (7.5 ftlb.)

5. Remove transmission jack from the work area.
