Installing Wire Harness For Electrically Adjustable Seat

Information

Observe connector assignment!

Connect blue  connector to the motor for fore-and-aft adjustment.

Connect white  connector to the motor for front vertical adjustment.

Connect yellow  connector to the motor for rear vertical adjustment.

Connector overview for wire harness for electrically adjustable seat

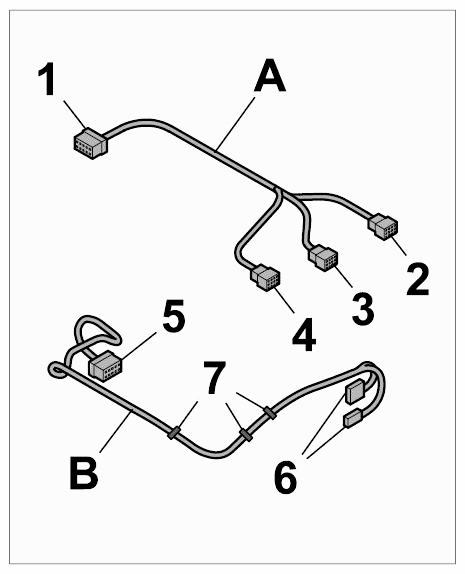

Fig 1: Harness Connector For Electrically Adjustable Seat
G09593972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Route wire harness -B-  and secure with new tie-wraps -7-  .
  2. Push on connector -6-  on seat adjustment switch until it engages firmly. → 721619 REMOVING AND INSTALLING CONTROL MODULE TRIM PANEL
  3. Attach connector -5-  to control unit for memory seat adjustment until it engages firmly. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
  4. Route the wire harness -A-  .
  5. Attach connector -4-  (white  ) to motor for front vertical adjustment until it engages firmly. → Installing Motor For Front Vertical Adjustment
  6. Attach connector -3-  (yellow  ) to motor for rear vertical adjustment until it engages firmly. → 729219 REMOVING AND INSTALLING MOTOR FOR REAR VERTICAL ADJUSTMENT
  7. Attach connector -2-  (blue  ) to motor for seat adjustment until it engages firmly. → Installing Motor For Seat Adjustment
  8. Attach connector -1-  to control unit for memory seat adjustment until it engages firmly. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
