Installing Guide For Seat Belt

Information

If the backrest cover -1-  has been replaced after repairs, the seat-belt guide mounting points must be measured again and marked.

• Mark upper mounting point with the dimensions -A= 95 mm- and -B= 50 mm-  .
• Mark lower mounting point with the dimensions -C= 25 mm- and -D= 155 mm-  .

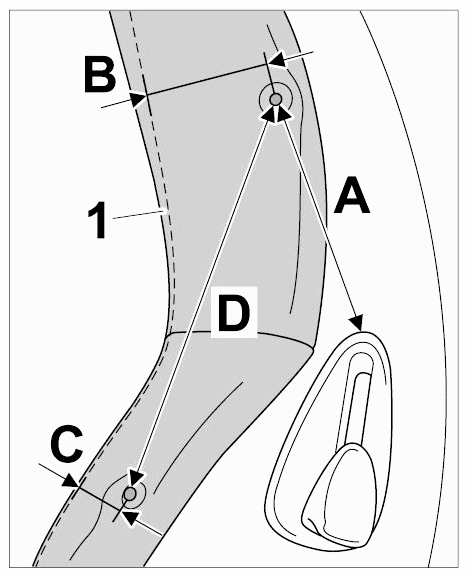

Fig 1: Marking Seat-Belt Guide Mounting Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position seat-belt guide -1-  with sleeve -5-  with the aid of the marking on the backrest cover.

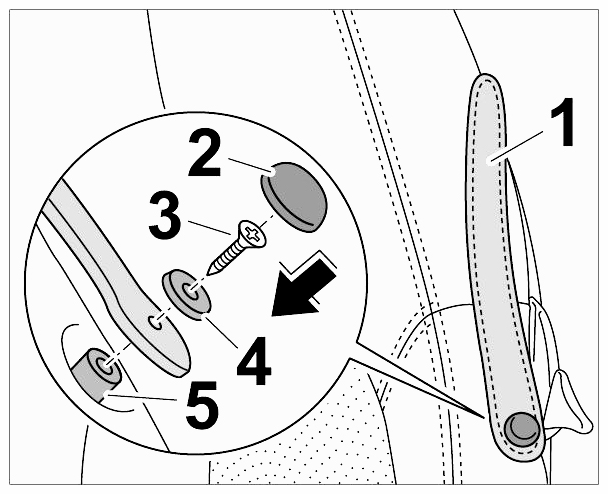

   Fig 2: Fastening Guide For Seat Belt At Bottom

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screw -3-  with spacer -4-  .
3. Press in -2-  cap
4. Position push button -3-  with the aid of the marking on the backrest cover -Arrow A-  and screw down with the fastening screw -2-  .
5. Press seat-belt guide -1-  into push button -3-  at top -Arrow B-  .

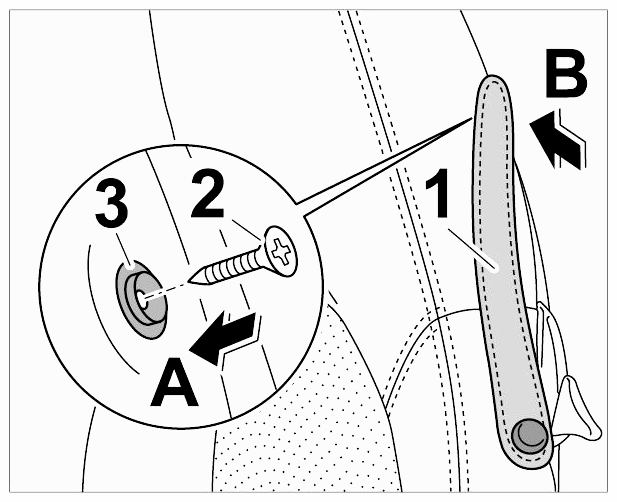

Fig 3: Fastening Guide For Seat Belt At Top
