Removing Padding For Front Backrest

Fig 1: Identifying Installation Position Of Padding For Front Backrest (Folding Sports Bucket Seat)
G09592565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carefully detach Velcro strip -1-  on the cover from the Velcro fastener on the front of the padding -2-  (-arrow-  ).
  2. Take off the cover -3-  .

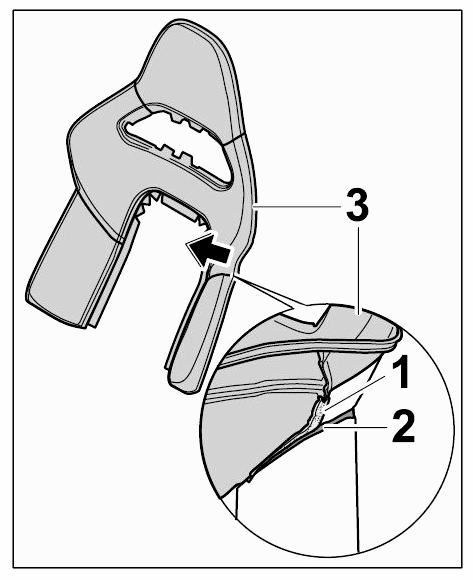

    3. Fig 2: Detaching Cover From Padding
    G09592566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
