Assembling Backrest Frame

  1. Press in fixing clips -1-  on the backrest frame -2-  .

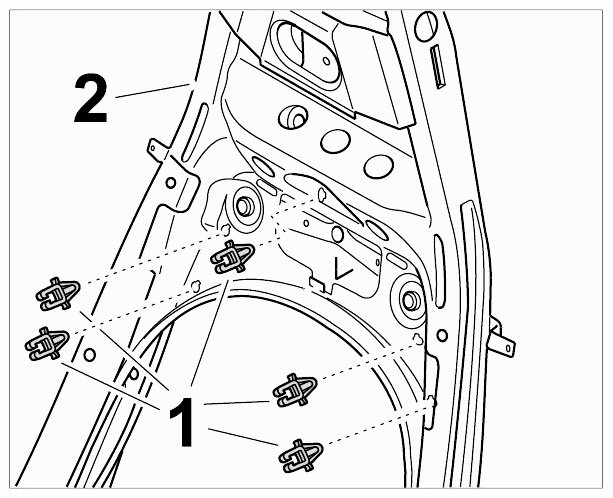

    Fig 1: Pressing Fixing Clips
    G09592168Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw fastening nuts -1-  onto the backrest frame -2-  .

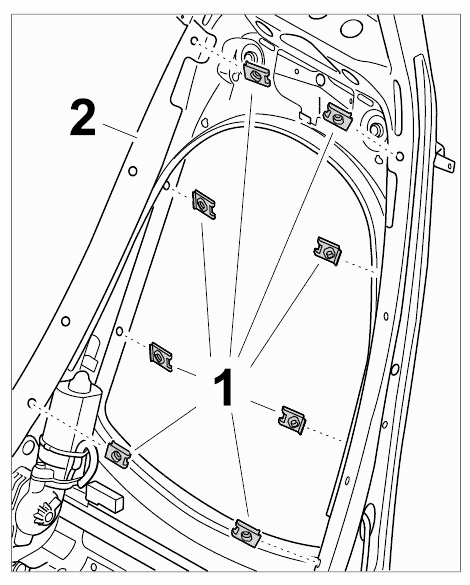

    Fig 2: Identifying Backrest Frame Fastening Nuts
    G09592169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
