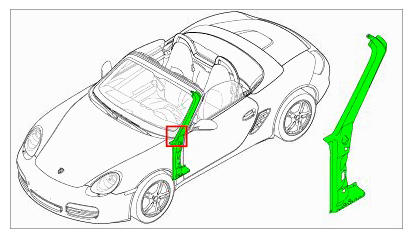

Removing Outer Hinge Pillar

1. 1.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

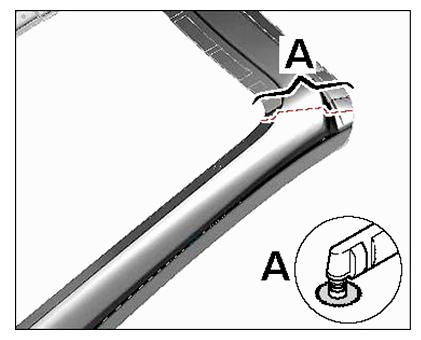

Fig 2: Identifying Inert-Gas Welded Seams Areas (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Make a rough cut in area -A-  to loosen the hard soldering joint.

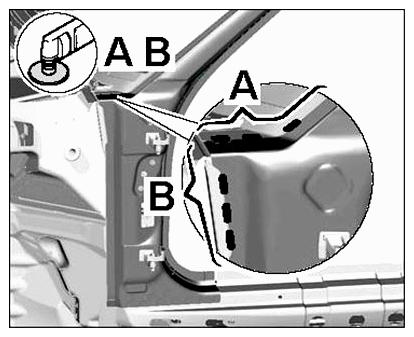

Fig 3: Identifying Hard Soldering Joint Cutting Area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Mill off spotwelds in area -A-  using a spotweld cutter.

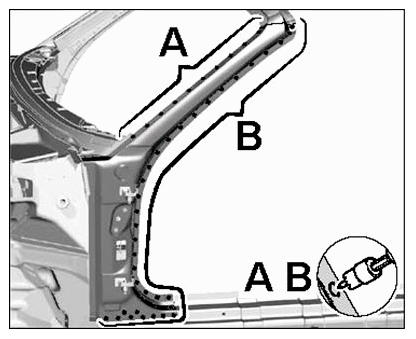

Fig 4: Identifying Milling Off Spotwelds Areas (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

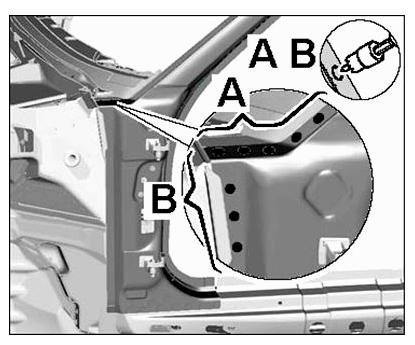

Fig 5: Identifying Milling Off Spotwelds Areas (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Mill off spotwelds in area -A-  using a spotweld cutter.
2. 5.2. Separate spotwelds in area -B-  using a parting grinder.

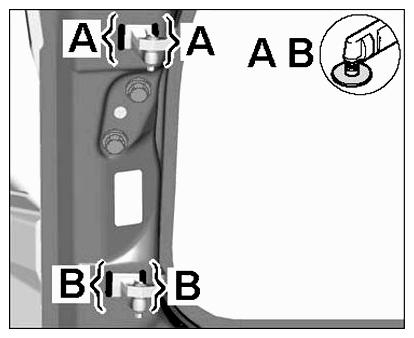

Fig 6: Identifying Milling Off And Separating Spotwelds Areas (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

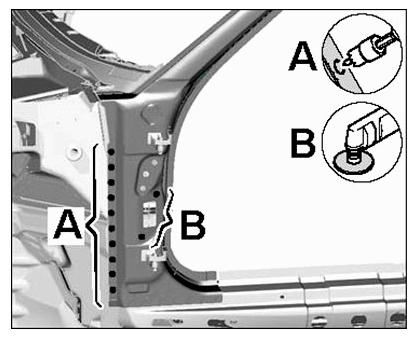

Fig 7: Identifying Inert-Gas Welded Seams Areas (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Unscrew fastening screws -1-  .

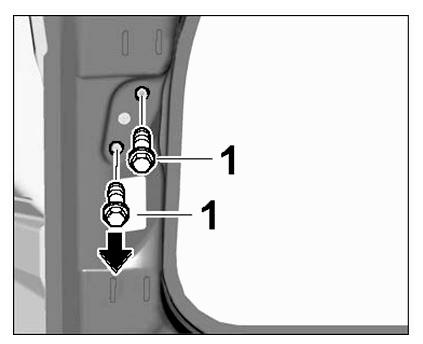

Fig 8: Loosening Outer Hinge Pillar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Separating body parts

• In the case of bonded panel joints with a hardened bonded layer on the outer panel, apply a generous amount of heat to heat up the outer panel in the area of the spotwelds. →  Diagram Of Body Bonding Points And Sealing Elements
• After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding. For the procedure see: Information on the use of structural adhesive in vehicle manufacturing →  Information On The Use Of Structural Adhesives In Vehicle Construction

1. 8.1. Heat up bonded joints between outer hinge pillar and hinge pillar reinforcement using the Leister Elektron hot-air gun   and remove outer hinge pillar.

1. 9.1. Heat up hard soldering joint using an oxyacetylene welder and remove old part of outer hinge pillar.

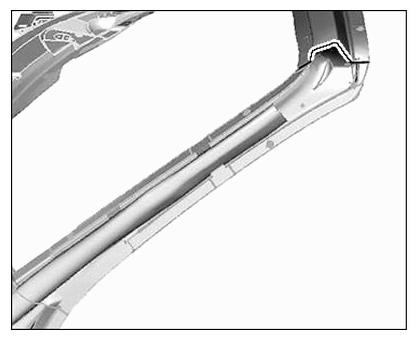

Fig 9: Identifying Hard Soldering Joint

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
