Bottom Of Front Of Vehicle, Layout Plan

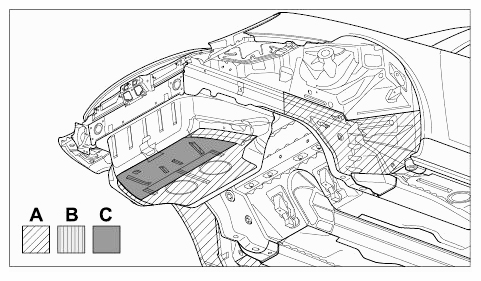

Fig 1: Identifying Plug Of Bottom Front Vehicle (Layout Plan)
G09588129Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 0.4 mm to 0.6 mm
  2. 0.6 mm to 0.8 mm
  3. 1 mm to 1.3 mm
