Removing Center Side Member

Information

Do not cut the side member in area -a-  .

Cut the side member only in areas -b-  and -c-  .

Cuts must not  obstruct the openings (holes in the side member).

Make cuts between the openings (holes in the side member).

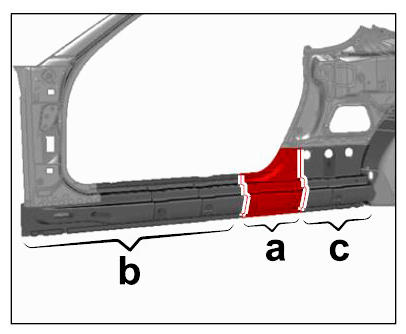

Fig 1: Identifying Center Side Member Cut Area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Determine the cut
   1. 1.1. Determine the position of the cut in area -A-  between the openings (holes). Mark the cut.

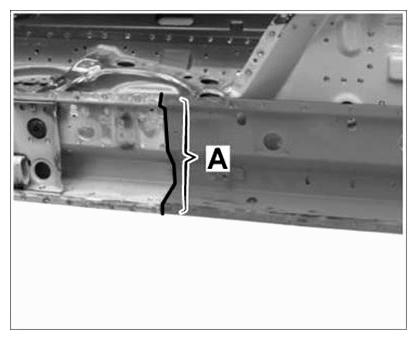

   Fig 2: Identifying Center Side Member Cutting Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Cut through center side member
   1. 2.1. Cut through the center side member in area -A-  .

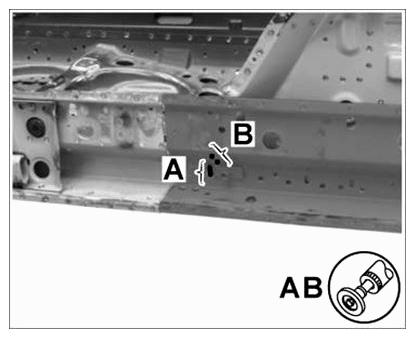

   Fig 3: Cutting Center Side Member Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Mill off spotwelds
   1. 3.1. Mill off spotwelds in area -A-  using a spotweld cutter.

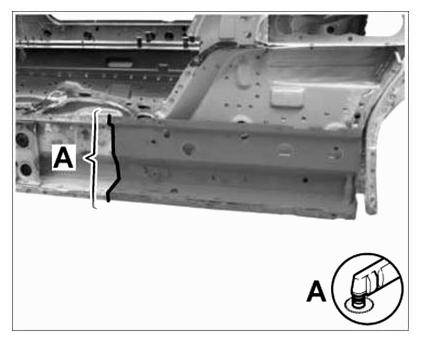

   Fig 4: Identifying Spotwelds Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Mill off and separate spotwelds
   1. 4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.
   2. 4.2. Separate spotwelds in area -C-  using a parting grinder.

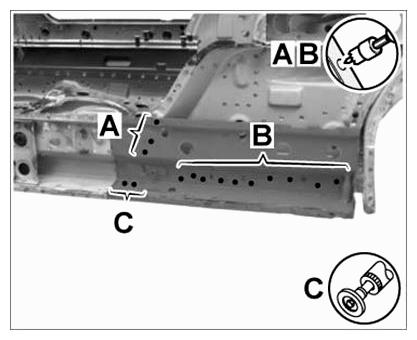

   Fig 5: Separating Spotwelds Area (C)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Separate welded joints
   1. 5.1. Separate inert-gas welded seam in area -A-  using a parting grinder.
   2. 5.2. Separate spotwelds in area -B-  using a parting grinder.

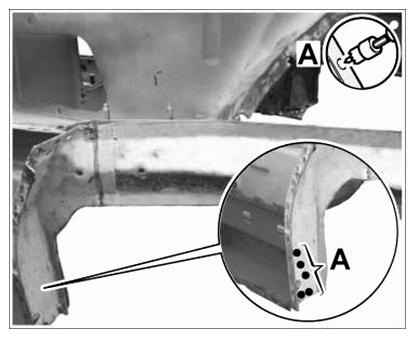

   Fig 6: Separating Welded Joints

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
