Removing Centre Console Socket

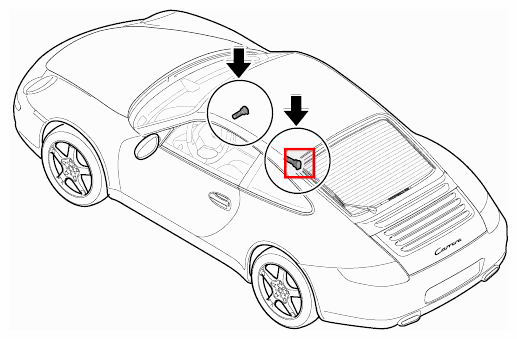

Fig 1: Identifying Centre Console Socket
G09593114Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn centre console, unlock electric plug -A-  and pull from the socket.
  2. Unlock socket and pull out of the centre console.

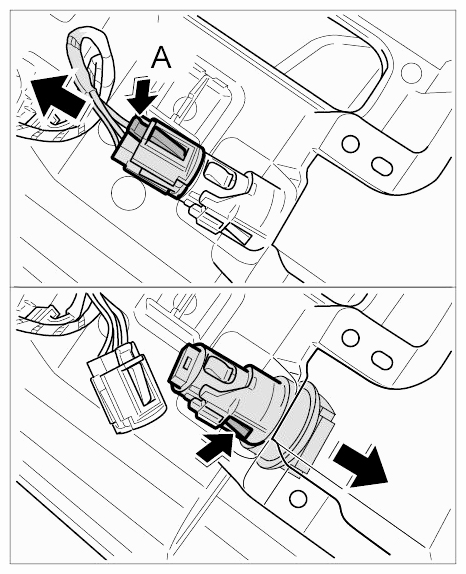

    3. Fig 2: Removing Centre Console Socket
    G09593115Courtesy of PORSCHE CARS NORTH AMERICA, INC.
