Installing Gateway Control Unit

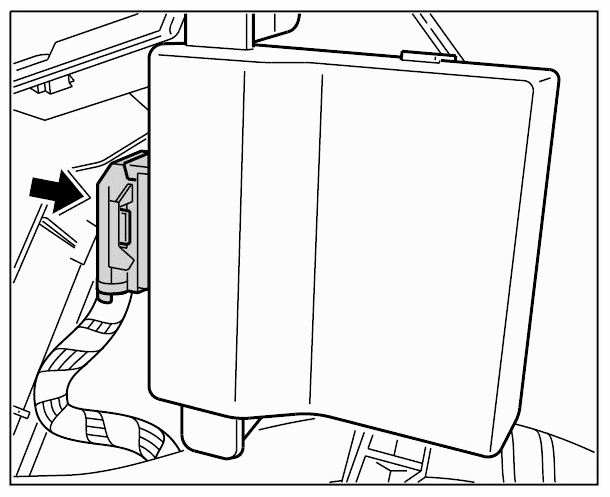

- Push On Electric Connector Until It Engages Securely On The Gateway Control Unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

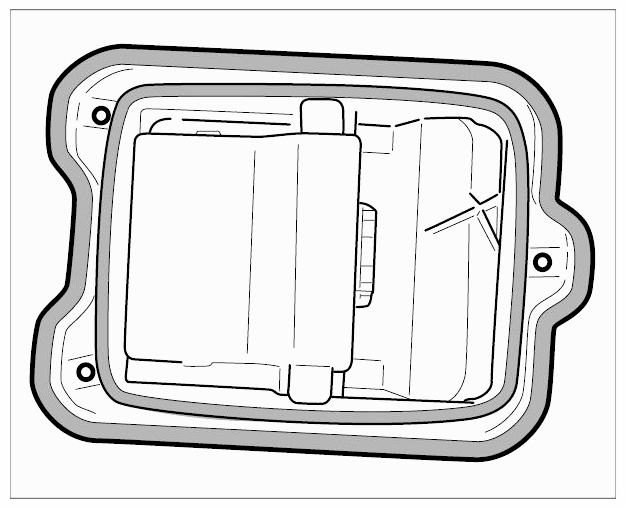

- Check The Seal On The Cover And Replace Seal Or Cover And Seal If Necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

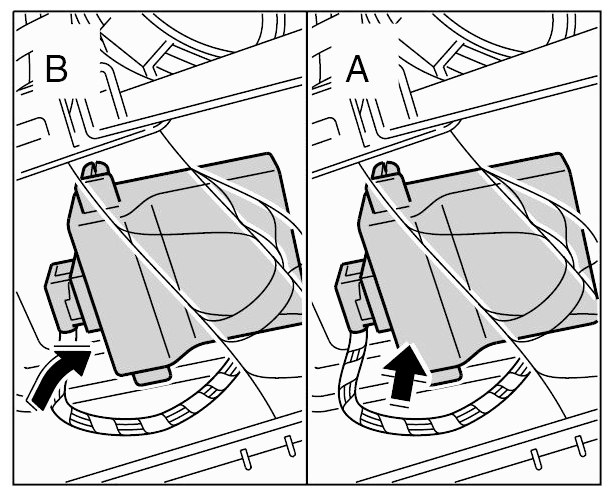

- Slide The Gateway Control Unit Into The Cover -B-
And Clip It In -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

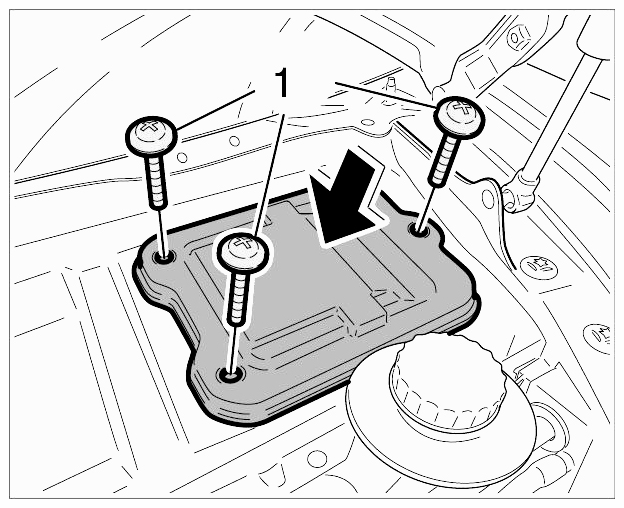

- Fit The Cover And Secure With The Three Fastening Screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- If A New Gateway Control Unit Has Been Installed, It Must Be Coded On The Vehicle. → Coding Gateway Control Unit
