Removing Stopwatch

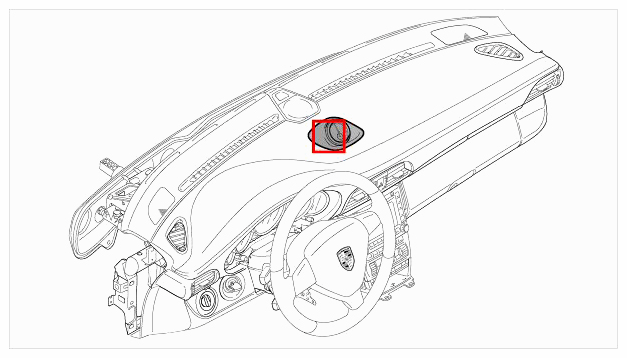

Fig 1: Identifying Stopwatch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

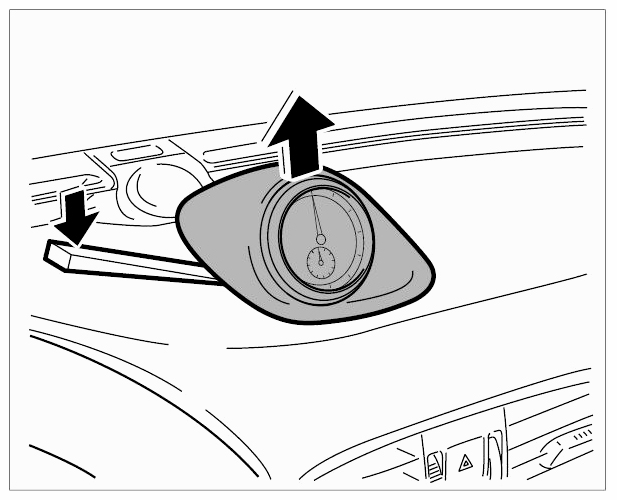

Insert a plastic spatula between the dashboard and the stopwatch. Lift up the stopwatch until its four clips unclip from the dashboard.

Fig 2: Removing Stopwatch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

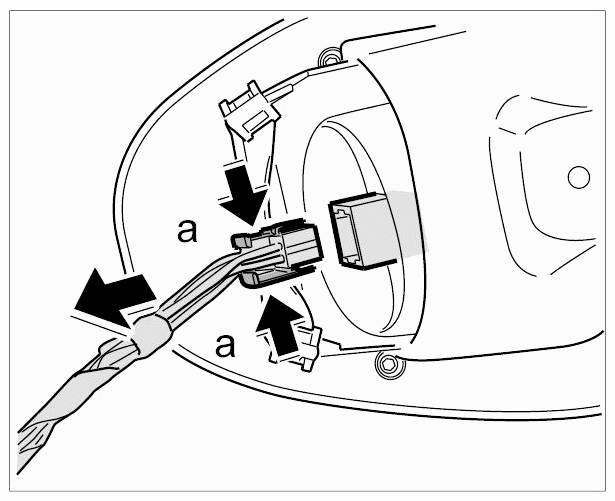

Release electric connector -a- and pull away from the stopwatch.

Fig 3: Releasing Stopwatch Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

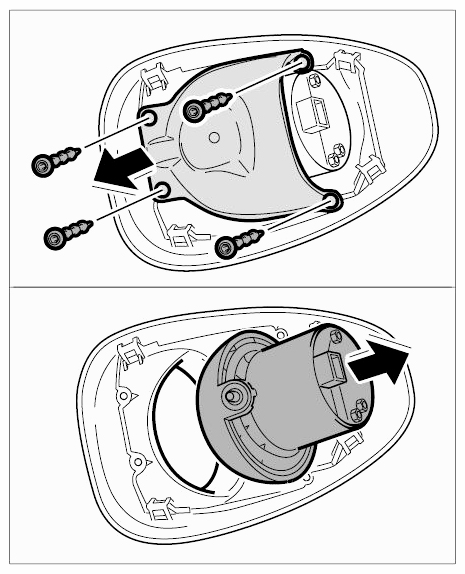

Turn the stopwatch around, unscrew the four fastening screws, remove the cover and take the stopwatch out of its holder.

Fig 4: Removing Stopwatch Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
