Removing Dashboard Insert

  1. Adjust the steering wheel as far down and as far back as it will go (as seen from the direction of travel)
  2. Unscrew fastening screw -2-  .
  3. Lift up the dashboard insert -1-  and remove.

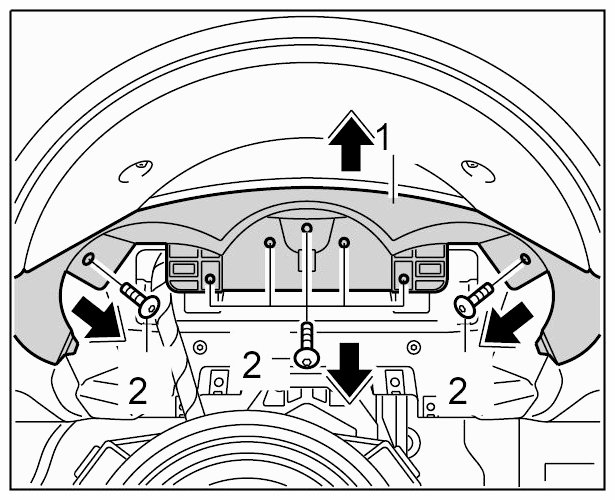

    4. Fig 1: Unscrewing Dashboard Fastening Screws
    G09593080Courtesy of PORSCHE CARS NORTH AMERICA, INC.
