Home >> Porsche >> 2011 >> Boxster Base, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> 90 - Instruments -- 987-BOXSTER-CAYMAN >> WM 900319 Removing And Installing Dashboard Insert (All Models) >> Installing Dashboard Insert

Installing Dashboard Insert

  1. Position dashboard insert -1-  on the dashboard and screw into place with the seven fastening screws -2-  . → Tightening torque: 2.0 ftlb.

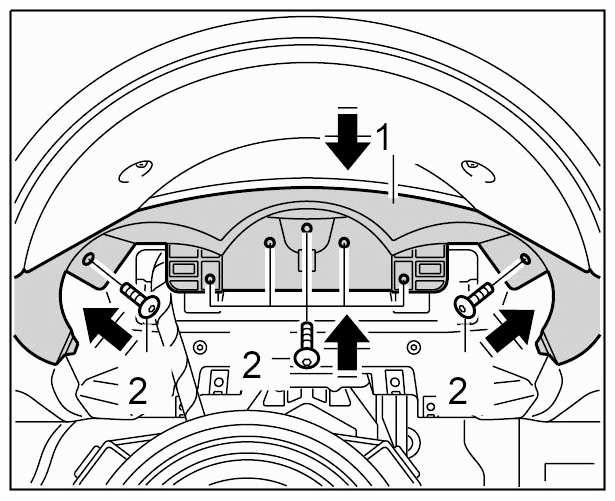

    Fig 1: Tightening Dashboard Fastening Screws
    G09593081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
