Removing Outer Rear Wheel Housing

Fig 1: Rear Wheel Housing Component Location
G09589503Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove side panel. → Removing Side Section
  2. Milling off spotwelds
    1. 2.1. Mill off spotwelds in area -A-  using a spotweld cutter.

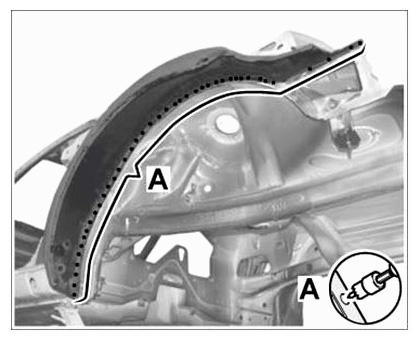

    Fig 2: Identifying Spotwelds Area (A)
    G09589504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Milling off spotwelds
    1. 3.1. Mill off spotwelds in area -A-  using a spotweld cutter.

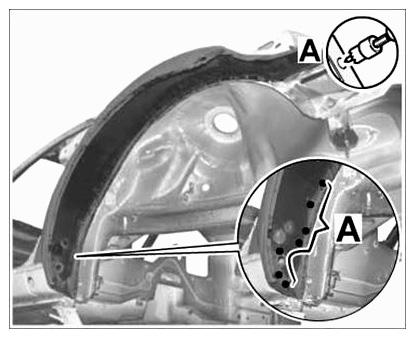

      Fig 3: Identifying Spotwelds Area (A)
      G09589505Courtesy of PORSCHE CARS NORTH AMERICA, INC.

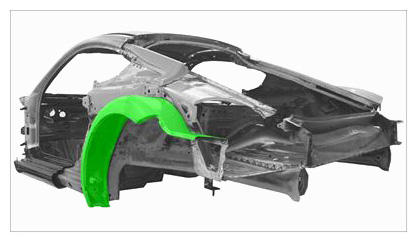

Fig 1: Rear Wheel Housing Component Location
G09589562Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove side panel. → Removing Side Section
  2. Milling off spotwelds
    1. 2.1. Mill off spotwelds in area -A-  using a spotweld cutter.
    Fig 2: Identifying Spotwelds Area (A)
    G09589563Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Milling off spotwelds
    1. 3.1. Mill off spotwelds in area -A-  using a spotweld cutter.

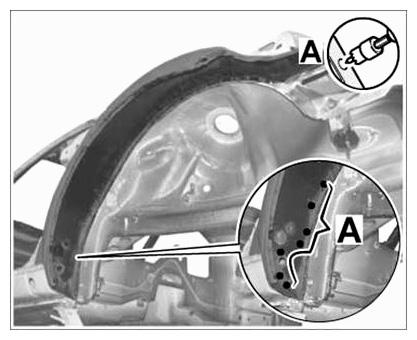

    Fig 3: Identifying Spotwelds Area (A)
    G09589564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
