Adjusting Toe

Turn the eccentric -A-  as required after releasing the lock nut using special tool insert for torque wrench 96260  .

Following adjustment, tighten lock nut for toe eccentric to 100 Nm (74 ftlb.) using special tool insert for torque wrench 96260  together with a torque wrench.

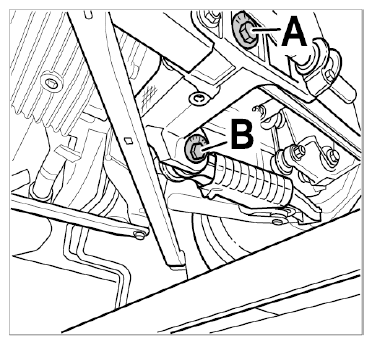

Fig 1: Identifying Toe And Camber Eccentrics
G09825959Courtesy of PORSCHE CARS NORTH AMERICA, INC.


Preliminary work: Check whether the steering wheel is displaced with respect to the steering gear. To do this, center the steering gear as described below.

Turn wheels to the straight-ahead position.

Then re-adjust the front wheel alignment, if necessary, until the pin -2-  in the driver -1-  and the lug on the steering gear housing -4-  are aligned.

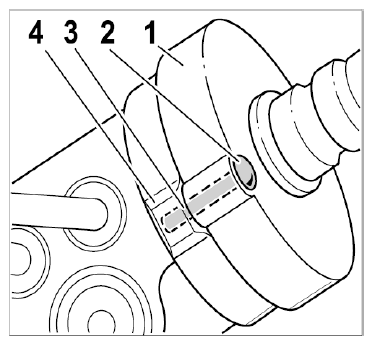

Fig 1: Identifying Steering Center Position
G09825962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

No. 3 is the desired breaking point for pins in new steering gears. The (new) pin -2-  is inserted into the driver -1-  and its underside sits in the lug -4-  . This locks the steering gear in the center position. After installation of a new steering gear, the lower part of the pin is sheared off (at the desired breaking point -3-  ) by turning the steering wheel. The upper part of the pin -2-  remains in the driver.

Fig 2: Identifying Steering Center Position
G09825963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

If necessary, re-position the steering wheel. When doing this, try to find the best position.

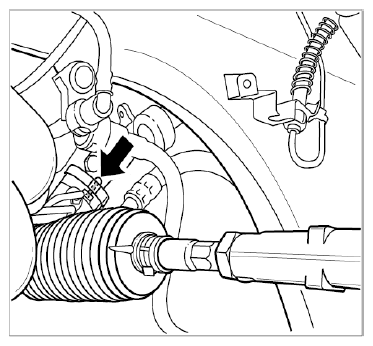

Fig 3: Locating Mark Center Steering Position
G09825964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp steering wheel in center position with steering-wheel holder -A-  . Use only steering-wheel holders that do not project into the area of the airbag unit -B-  . If necessary, shorten guide rod of steering-wheel holder at the top -arrow-  .

For fast and reliable steering wheel alignment in the center position use a -steering wheel balance-  (with integrated angle measurement box) → WE1343 Steering wheel balance  .

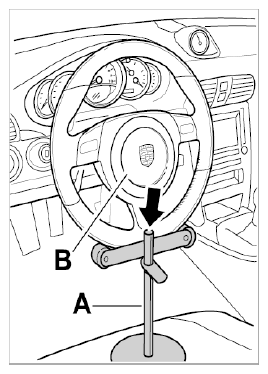

Fig 4: Locating Steering-Wheel Holder
G09825965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

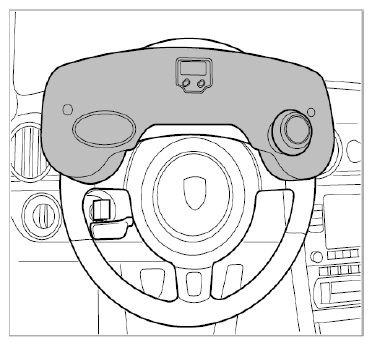

Fig 5: Identifying Steering Wheel Balance
G09825966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

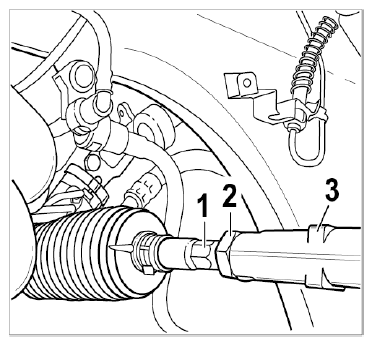

Loosen tie rod lock nut(s) -2-  . Apply counter-pressure when loosening or tightening tie rod lock nuts on the square part of the tie rod -3-  , with a spanner. Next, adjust toe at the hexagonal part -1-  of the tie rod(s). Then tighten tie rod lock nuts -2-  to the specified tightening torque.

Fig 6: Adjusting Toe
G09825967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To loosen and tighten the tie rod-lock nut(s), use special tool (socket-wrench insert) P 9730 -A-  together with a torque wrench -B-  . The tightening torque for the tie rod lock nut(s) of 50 Nm (37 ftlb.), when using a socket-wrench insert  9730, corresponds to a value of approx. 32.5 Nm (24 ftlb.) on the torque wrench.

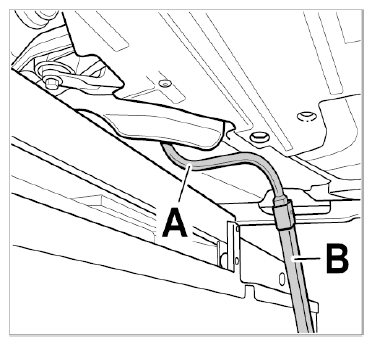

Fig 7: Identifying Tie Rod Lock Nuts
G09825968Courtesy of PORSCHE CARS NORTH AMERICA, INC.
