Adjusting Front Camber

Unlike the 911 Carrera (997), a basic camber adjustment  is made by means of intermediate plates on the 2-part control arm of the front axle on the 911 GT3/GT2. A 1-mm-thick adjustment plate -arrow-  is fitted as standard on the right and left in the 911 GT3/GT2.

Camber adjustment (fine adjustment) is carried out at the spring strut mount in the same way as for the 911 Carrera (997).

The 2-part control arms permit a correspondingly increased camber value for circuit use. This is achieved using thicker adjustment plates.

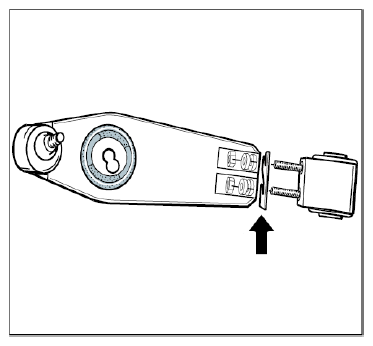

Fig 1: Locating Basic Camber Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
