Adjusting Camber

Turn the eccentric -B-  as required after releasing the lock nut using special tool insert for torque wrench 96260  .

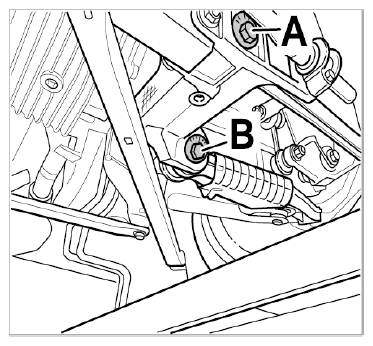

Fig 1: Identifying Toe And Camber Eccentrics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tighten lock nut for camber eccentric to 100 Nm (74 ftlb.) using special tool insert for torque wrench 96260  together with a torque wrench.

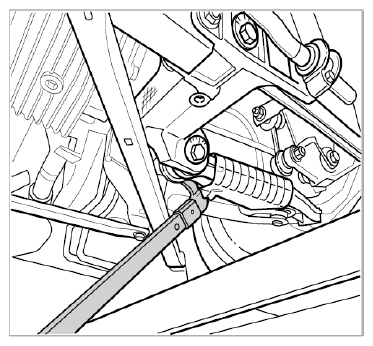

Fig 2: Identifying Special Tool 96260 (Torque Wrench)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
