Front Axle

From road contact surface to hexagon-head bolt on cross-member threaded connection to the body.

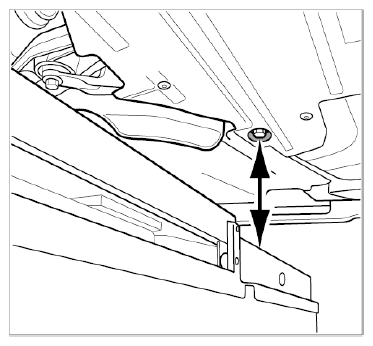

Fig 1: Measuring Height Of Front Axle (Left-Hand Side)
G09825953Courtesy of PORSCHE CARS NORTH AMERICA, INC.
