Front Axle

From road contact surface to hexagon-head bolt of cross-member screw connection to the body.

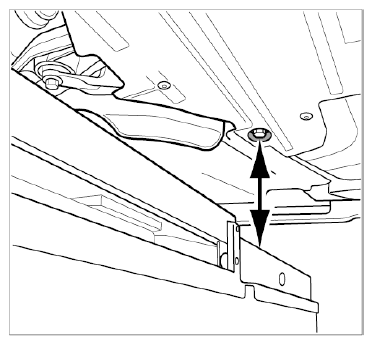

Fig 1: Measuring Height Of Front Axle (Left-Hand Side)
G09825924Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nominal value for front and rear axles→ Adjustment values for wheel alignment  .
