Removing Rear TPM Transmitter

Rear left TPM transmitter:

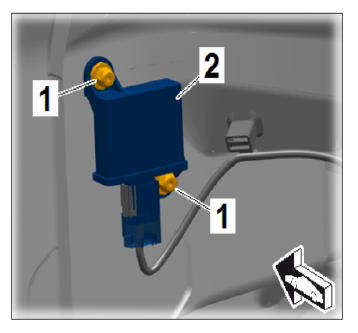

1. Unscrew fastening nuts -1-  and remove rear left TPM transmitter -2-  .
   Fig 1: Removing Rear Left TPM Transmitter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

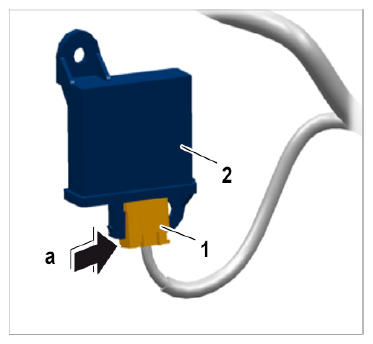

2. Release electric plug connection -1-  (-a-  ) and disconnect it from the rear left TPM transmitter -2-  .
   Fig 2: Locating Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear right TPM transmitter:

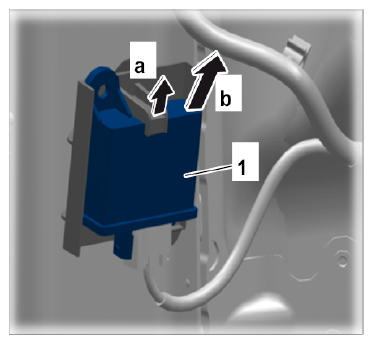

3. Remove rear right TPM transmitter -1-  .
   1. 3.1. Lift the catch -a-  and tilt rear right TPM transmitter -1-  at the top towards the rear.
   2. 3.2. Lift rear right TPM transmitter -1-  out of the holder and remove it -b-  .

      Route the electric line between the rear right TPM transmitter and holder during installation.

      Fig 3: Removing Rear Right TPM Transmitter (Front Left Transmitter)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release electric plug connection -1-  (-a-  ) and disconnect it from the rear right TPM transmitter -2-  .
   Fig 4: Locating Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
