Installing Control Unit For Tyre Pressure Monitoring (TPM)

Information

Before installing the control unit for Tyre Pressure Monitoring (TPM), visually check the control unit and plug connection with regard to the following points:

• Damage to the housing.
• Damage to the contacts on the control unit.
• Damage to the connector and contacts on the vehicle wire harness.
• Dirty contacts.

If the control unit is damaged, replace it.

If the wire harness, connector or contacts are damaged, repair them in accordance with the relevant safety instructions using the Repair kit for Cayenne wire harnesses NR.155-2  .

If the contacts are dirty, clean them.

1. Plug in electric connector on the control unit and lock connector -B-  .

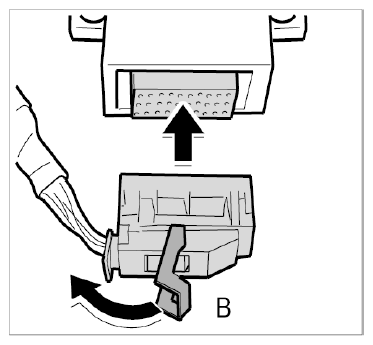

   Fig 1: Installing Locking Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position control unit and secure with both fastening nuts.

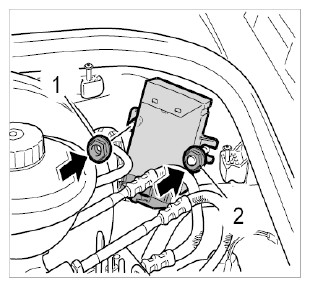

   Fig 2: Securing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
