Adjusting Toe

Turn the eccentric accordingly -A-  after releasing the fastening nut using special tool Insert for torque wrench 96260  .

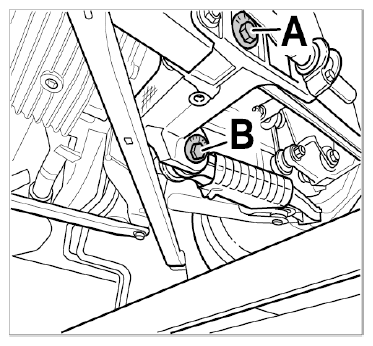

Fig 1: Identifying Toe And Camber Eccentrics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Use special tool 9626 in combination with a torque wrench to undo and tighten the fastening nuts of the toe and camber eccentrics. The prescribed lock-nut tightening torque of 100 Nm (74 ftlb.) also corresponds to a setting on the torque wrench of approx. 100 Nm (74 ftlb.).

Tighten fastening nut for toe eccentric to 74 ftlbs using special tool Insert for torque wrench 96260, with a torque wrench.
