Information on acceleration sensors

The two acceleration sensors are used to measure vertical movements of the body (one sensor per axle).

The acceleration sensors are fitted close to the spring struts at the front right and rear left. The sensors at the front right and rear left are identical.

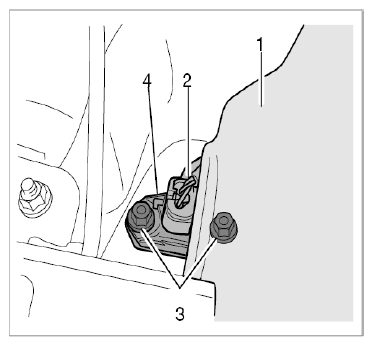

Fig 1: Identifying Front Right Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

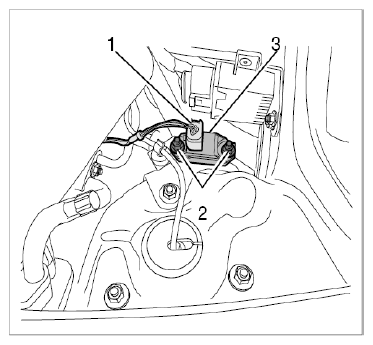

Fig 2: Identifying Rear Left Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
