Removing PASM control unit

Information

If the control unit has to be replaced, read out the values saved in the control unit before starting the removal. → 431619 REMOVING AND INSTALLING PASM CONTROL UNIT .

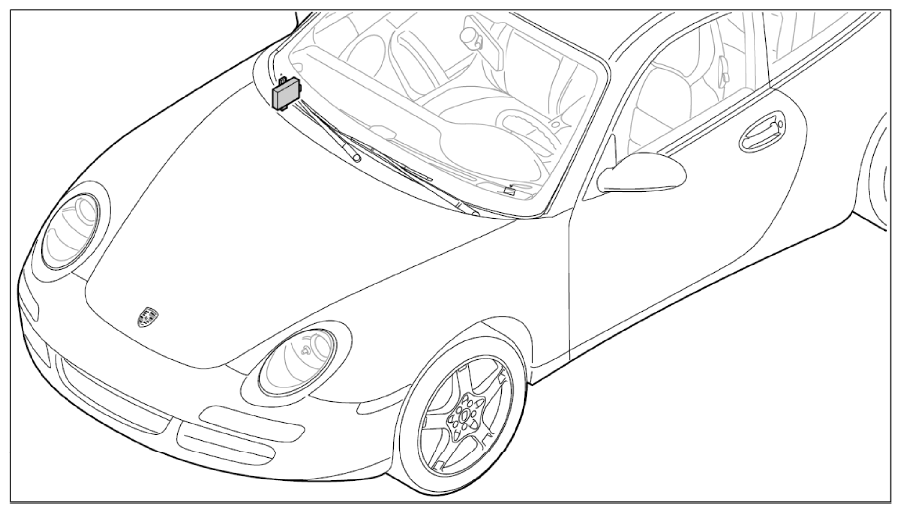

Fig 1: Identifying Installation Position Of PASM Control Unit (911)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pull carpet on right-hand side to the side.

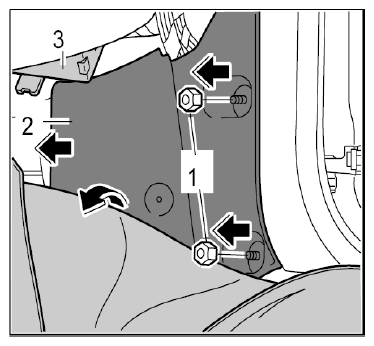

   Fig 2: Unscrewing Cover For Passenger'S Footwell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the two fastening nuts -1-  and remove the cover -2-  .
3. Unclip control unit from the support and pull it out and down.

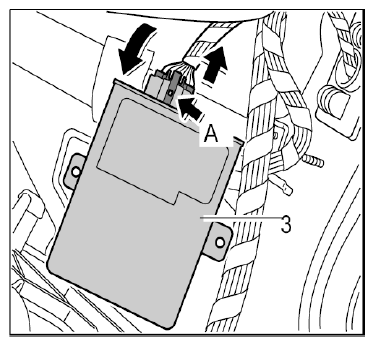

   Fig 3: Disconnecting Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release -A-  and pull off electric connector.
