Installing PASM control unit

Connect the electric plug connection until the plug clicks into place.

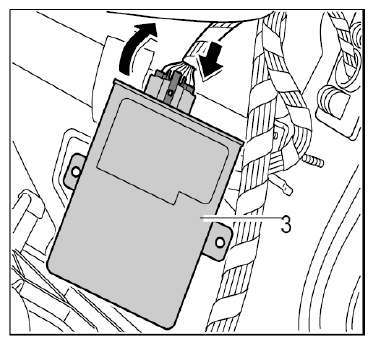

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in control unit into the support and clip it in.
Fit cover -2- and secure with the two fastening nuts -1- .

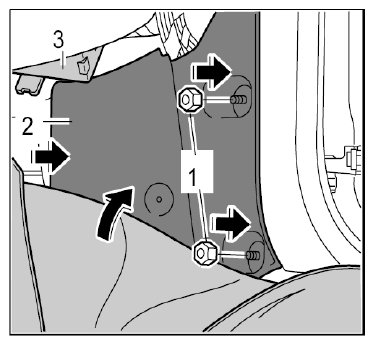

Fig 2: Screwing On Cover For Passenger's Footwell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Stick on carpet at side again onto cover.
