Information on operation

Information

• Press the corresponding "arrow" switch in the centre console to carry out a functional check (lift and lower front axle).
• If a pressure accumulator is completely vented, it may take up to two minutes before the vehicle height is reached and "LIFT" is displayed (next to the digital speedometer) the first time the axle is lifted.
• The doors must be closed in order to lower the front axle.
• Do not lower the vehicle if it is above an obstacle!

• The system (the pressure accumulator) is filled when the engine is running.

  Carry out a function test (lift and lower front axle).

• Lift the front axle. To do this, press the corresponding switch in the centre console -arrow-  .

  If a pressure accumulator is completely vented, it may take up to two minutes before the vehicle height is reached and -LIFT-  is displayed (next to the digital speedometer) the first time that the axle is lifted.

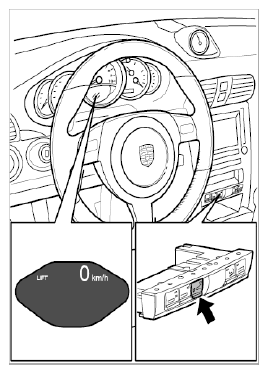

  Fig 1: Locating Centre Console

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Lower the front axle. To do this, press the corresponding -arrow-  switch in the centre. The doors must be closed to lower the front axle.

  Do not lower the vehicle if it is above an obstacle!
