Removing function module

  1. Release and pull off three connectors behind the pressure accumulator (pressure tank) -arrows-  .

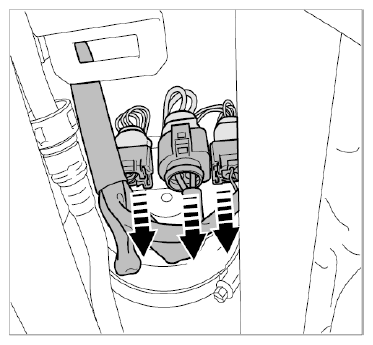

    Fig 1: Pulling Off Connectors Behind Pressure Accumulator (Pressure Tank)
    G09825797Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect (unscrew and remove) the two pressure lines -1-  at the valve block.

    Release and remove (pull out) the function module. Get a second mechanic to help to support the module while you release it and to remove it.

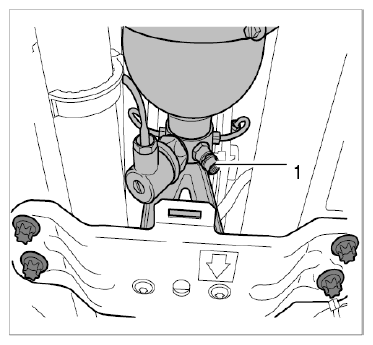

    Fig 2: Identifying Module Mounting
    G09825796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew the following screws in order to release the module:

      Central screw at the front -4-  , two M8 screws -2-  (securing module to holder) and four M10 Torx screws -3-  (securing holder to body).

    2. 2.2. Carefully spread the coolant hoses (press them outward) while removing the module.
