Preliminary work for removing function module

Switch off ignition.
Remove cover for front and centre underbody.
→ Removing cover for front underbody

→ Removing cover for centre underbody

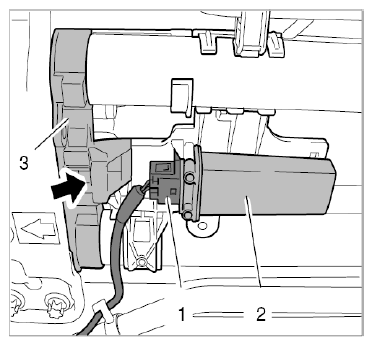

Remove TPM antenna -2- and coolant pipe holder -3- (at the front).

Fig 1: Identifying TPM Antenna And Coolant Pipe Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Release TPM connector -1- and pull it off.
2. 3.2. Disengage holder from TPM antenna at the holder for coolant pipes and slide it backwards at the same time.
3. 3.3. Remove TPM antenna -2- from the coolant pipes.
4. 3.4. Release front coolant pipe holder -arrow- and slide it backwards at the same time. Then unclip and remove the holder.

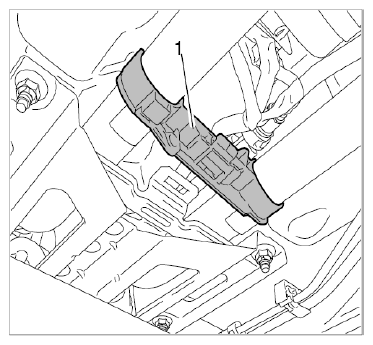

Remove rear coolant pipe holder -1- .

Fig 2: Identifying Rear Coolant Pipe Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Unclip vacuum line from the holder.
2. 4.2. Unclip wiring harness from the holder.
3. 4.3. Release coolant pipe holder -1- and slide it forward at the same time.
4. 4.4. Pull coolant pipe holders -1- from the coolant pipes alternately (always one side only/then the other side).

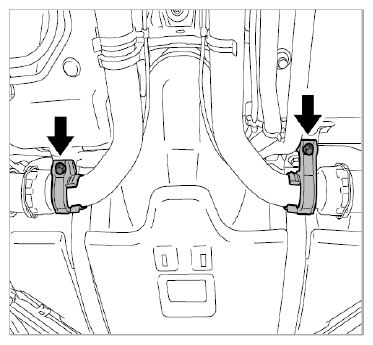

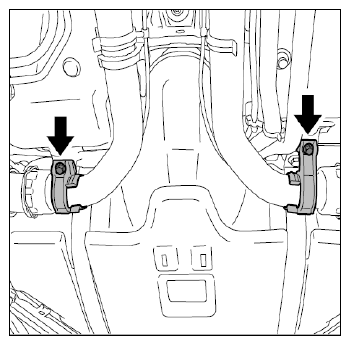

Loosen two coolant pipe holders at the front left and right. To do this, unscrew the M6 screw -arrows- .

Fig 3: Locating Coolant Pipe Holders At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Depressurise the system (bleed air from pressure accumulator).
To do this, remove (unscrew) the black protection cap on the release valve -1- and carefully press on the valve insert using a suitable object or use a valve screwdriver Nr.164 Pos.5 to unscrew the valve insert. Be very careful as there can be up to 17 bar pressure here. Wear protective gloves, goggles and ear protectors!

Fig 4: Identifying Release Valve For System Pressure
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
