Removing Frame For Roll-Over Protection System

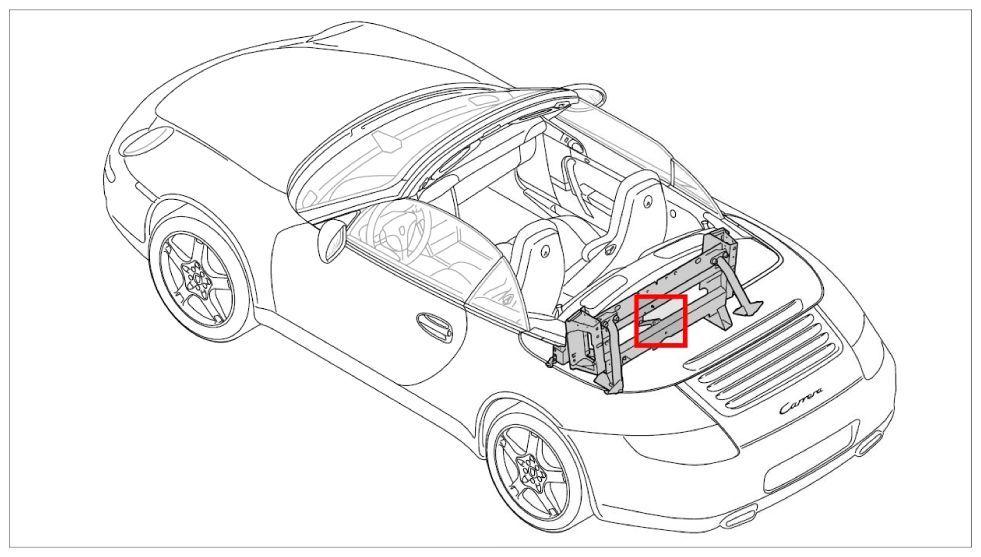

Fig 1: Identifying Frame For Roll-Over Protection System Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Press in locking tabs -arrows A-  and pull plug connections -1-  off wire harness for roll-over protection system -arrow B-  .

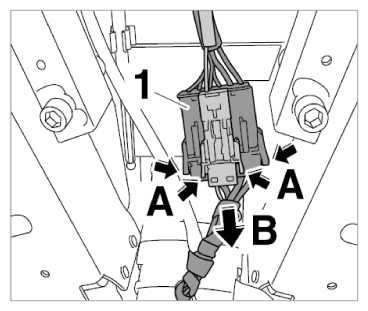

   Fig 2: Disconnecting Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screw -1-  and fastening nuts -2-  from Z support -3-  .

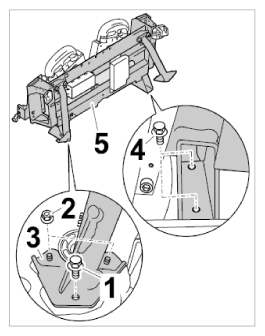

   Fig 3: Removing Frame For Roll-Over Protection System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew fastening screws -4-  and carefully remove frame for roll-over protection system -5-  upwards out of the vehicle.
