Installing AWS Control Unit

Position AWS control unit on the holder and screw it down using the three fastening screws -2- .

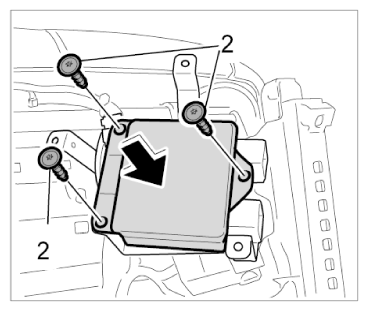

Fig 1: Installing AWS Control Unit Screw And Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position AWS holder on the seat bracket and screw it down using the three fastening screws -1- .

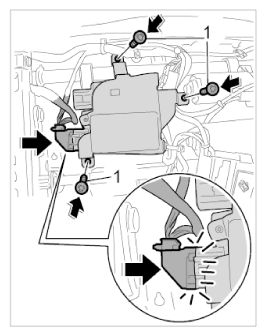

Fig 2: Installing AWS Holder To Seat Bracket Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push electric connector onto AWS control unit until it is felt to engage.
Insert seat central connector into AWS holder and clamp by turning to the right.
