Removing Front Three-Point Belt

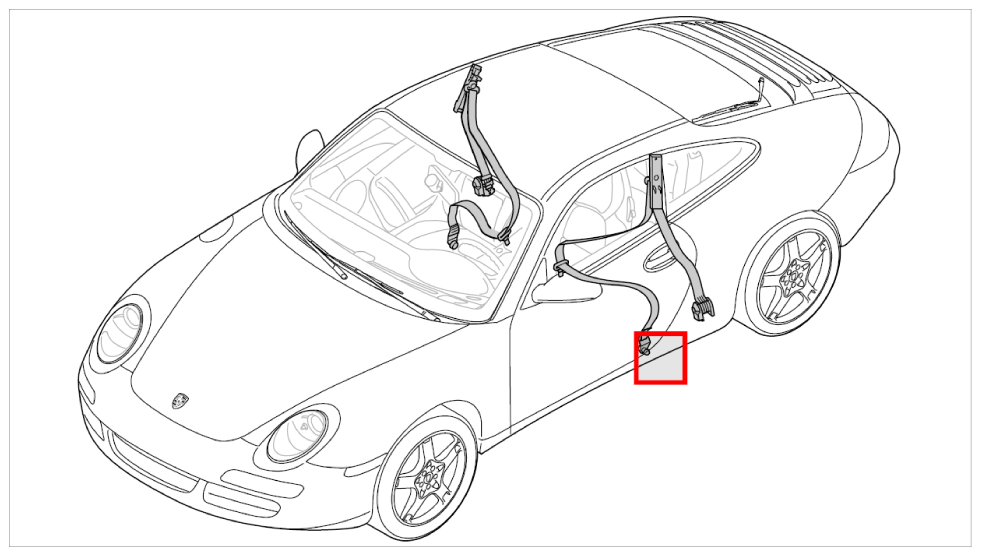

Fig 1: Identifying Front Three-Point Belt Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

After the seat-belt pretensioners have been triggered, they must be replaced. The fault can be read out using the PIWIS Tester 9718 . Observe direction of travel.
If the seat-belt pretensioner has been triggered, cut through the belt strap before removing the seat-belt pretensioner. This ensures that the defective automatic belt device is not installed again.
It is important to make sure that the negative terminal of the battery is disconnected.

Loosen seat belt and fitting.

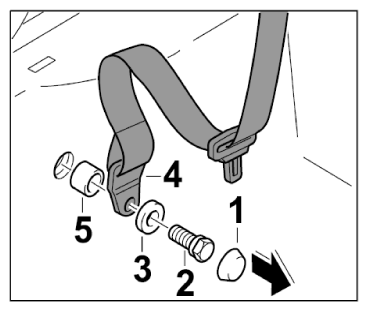

Fig 2: Loosening Seat Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Lever off cap -1- with a screwdriver -arrow- .
2. 1.2. Unscrew fastening screw -2- . Remove washer -3- , seat belt mount -4- and spacer sleeve -5- .

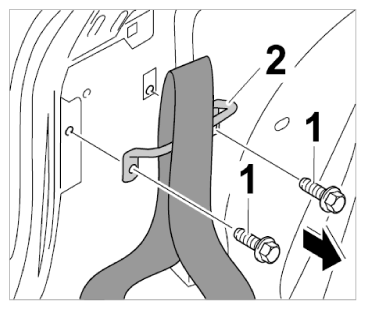

Unscrew fastening screws -1- from the deflector -2- .

Fig 3: Removing Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

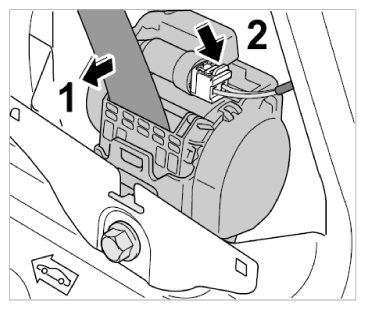

Remove seat belt -1- by pulling it towards the front.
Release lock for electric connector -2- on the seat-belt pretensioner by using a screwdriver in -arrow direction- .

Fig 4: Releasing Connector For Seat-Belt Pretensioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

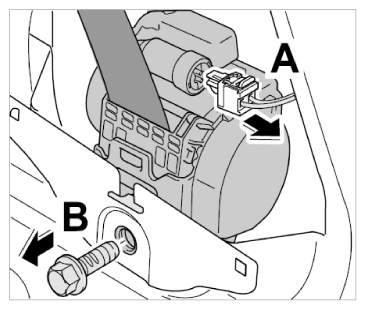

Pull out connector from seat-belt pretensioner -arrow A- .
Unscrew fastening screw -arrow B- and remove seat-belt tensioner.

Fig 5: Removing Seat-Belt Pretensioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
