Installing Front Three-Point Belt

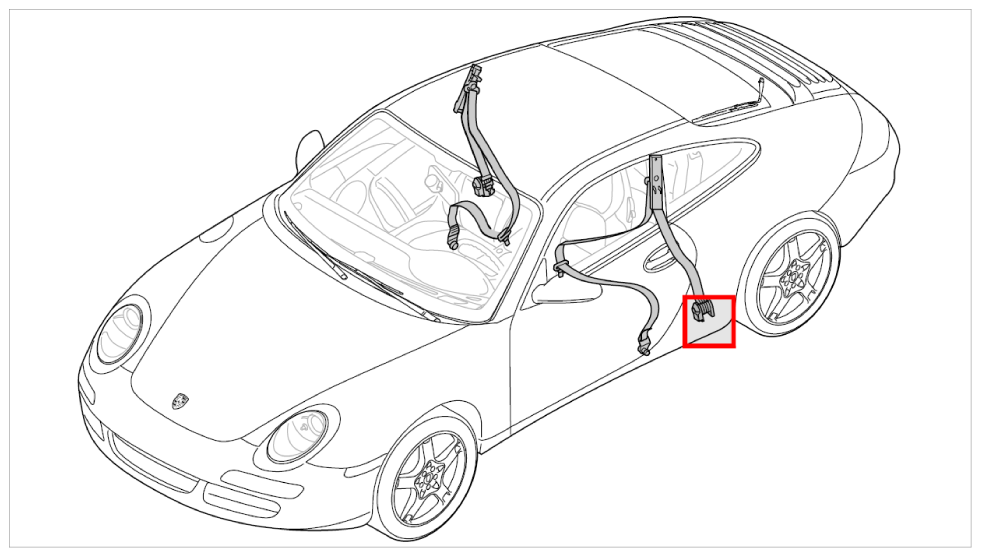

Fig 1: Identifying Front Three-Point Belt Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The seat-belt pretensioner may only be installed when the ground terminal of the vehicle battery is disconnected.
• The vehicle battery may only be re-connected after the re-installation of the belt has been completed.

1. Install seat-belt pretensioner. Observe direction of travel.

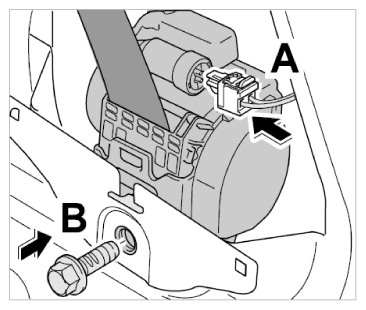

   Fig 2: Installing Seat-Belt Pretensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screw -arrow B-  . → Tightening torque: 50 Nm (37 ftlb.)+/-10 %
3. Insert electric connector -2-  into the seat-belt pretensioner -arrow A-  .

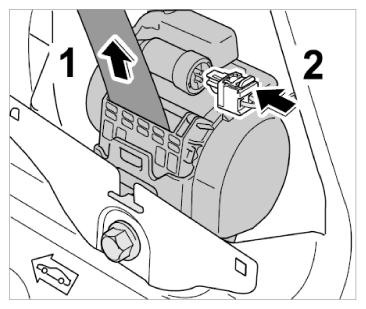

   Fig 3: Locking Connector For Seat-Belt Pretensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Using a screwdriver, for example, push in the lock in -direction of arrow-  until it engages.
5. By gently pulling on the belt -1-  , check the winding action of the belt strap.
6. Position deflector -2-  and seat belt on the inner side section and secure with the fastening screws -1-  . → Tightening torque: 10 Nm (7.5 ftlb.)

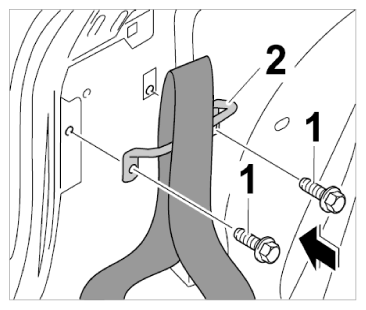

   Fig 4: Installing Deflector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Ensure that belt strap can run properly!

7. Secure seat belt and fitting.

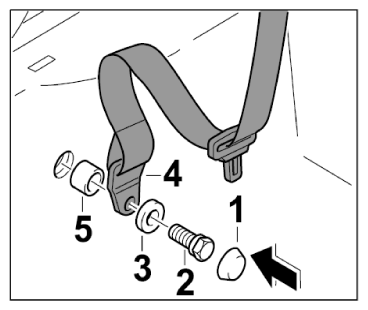

   Fig 5: Securing Seat Belt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Secure fastening screw -2-  , washer -3-  , seat belt with fitting -4-  and spacer sleeve -5-  on inner side member. → Tightening torque: 50 Nm (37 ftlb.)+/-10 %
   2. 7.2. Press cap -1-  onto the fastening screw -2-  (-arrow-  ).
