Installing Heating/Fresh Air Unit

Information

Do not remove the stoppers for the air-conditioning lines until just before installing the expansion valve.

Check foam parts for signs of damage. If in doubt, replace them.

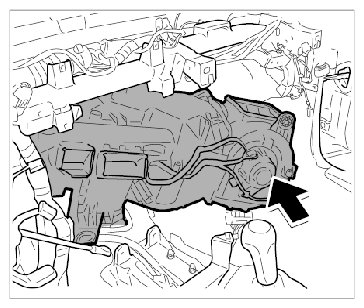

1. Insert heater/air-conditioning unit in the vehicle over the passenger's side.

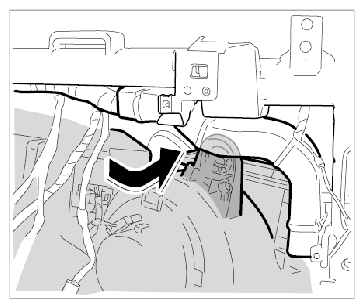

   Fig 1: Placing Heater/Air-Conditioning Unit In Vehicle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lift heater/air-conditioning unit over the centre console and position under dashboard bracket.

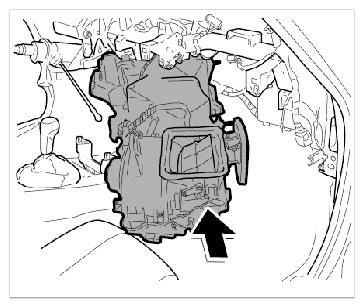

   Fig 2: Positioning Heater/Air-Conditioning Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position holder for the B+ line on the heater/air-conditioning unit and tighten with the fastening screw -7-  . → Tightening torque: 1.7 Nm (1.5 ftlb.)

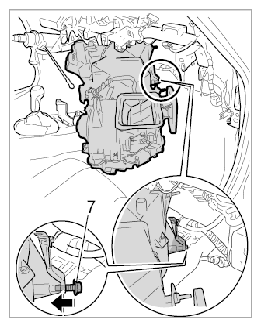

   Fig 3: Tightening Holder For B + Lead

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

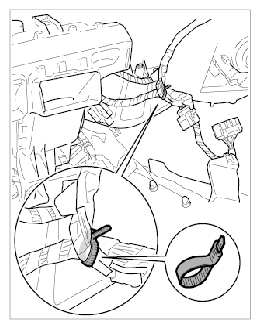

4. Lay electric line from vehicle wire harness to heater/air-conditioning unit wire harness and fix with a tie-wrap.
   Fig 4: Identifying Fastening Electric Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

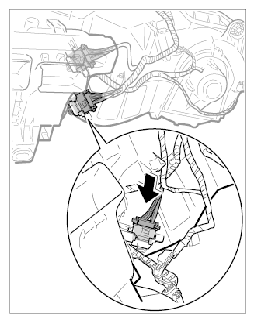

5. Connect upper electric plug connection at heater/air-conditioning unit until it is felt to engage.

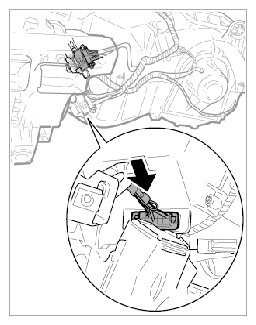

   Fig 5: Connecting Upper Electrical Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Connect upper electric plug connection at heater/air-conditioning unit until it is felt to engage.
   Fig 6: Connecting Lower Electrical Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

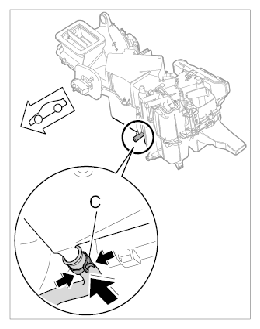

7. Check water drain hose for damage; if drain hose shows no sign of damage, connect hose to the drain on heater/air-conditioning unit and fix with the clamp -C-  .
   Fig 7: Fixing Water Drain Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Push heater/air-conditioning unit into position under right side of dashboard bracket in the direction of firewall.
   Fig 8: Positioning Heater/Air-Conditioning Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Guide holder -B-  for the heater/air-conditioning unit over the dashboard bracket, push through the mounting of the heater/air-conditioning unit and turn through 90°.

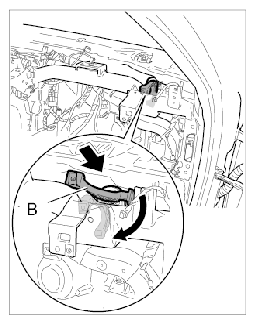

   Fig 9: Positioning Holder For Heater/Air-Conditioning Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

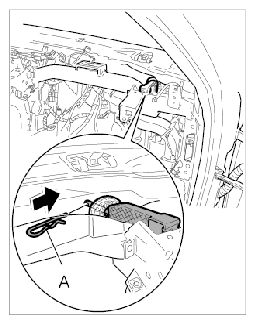

10. Fix holder for heater/air-conditioning unit with cotter pin -A-  .
    Fig 10: Removing Holder For Heater/Air-Conditioning Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

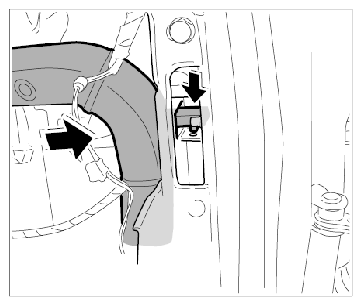

11. Push dashboard bracket forwards while lifting the heater/air-conditioning unit and taking care that no electric lines get trapped.

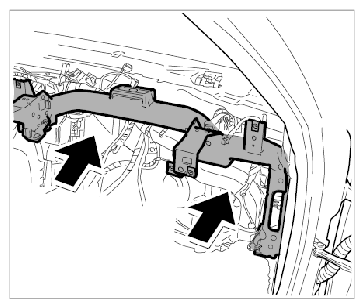

    Fig 11: Pushing Dashboard Bracket Forwards

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

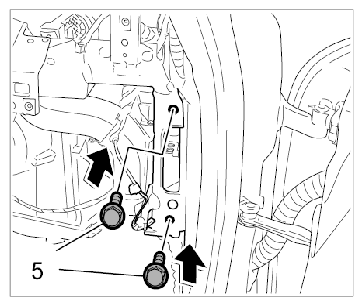

12. Screw down dashboard bracket with the two fastening screws -5-  . → Tightening torque: 23 Nm (17 ftlb.)
    Fig 12: Securing Dashboard Bracket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Clip in the plastic holders for the electric main wire harness to the dashboard bracket.
    Fig 13: Clipping In Plastic Holders

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

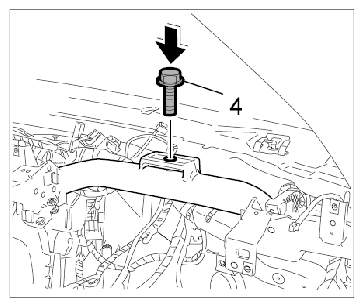

14. Secure dashboard bracket with the fastening screw -4-  . → Tightening torque: 9.7 Nm (7.0 ftlb.)
    Fig 14: Securing Dashboard Bracket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Screw down holder of heater/air-conditioning unit with the fastening screw -3-  . → Tightening torque: 3.5 Nm (2.5 ftlb.)

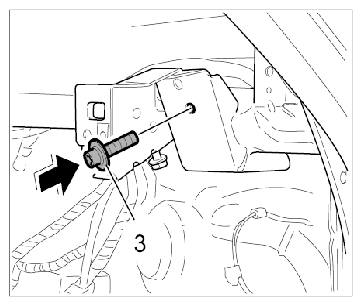

    Fig 15: Securing Holder For Heater/Air-Conditioning Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

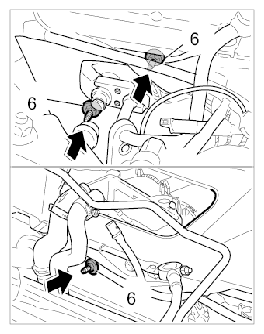

16. Slide the fastening bolts of the heater/air-conditioning unit through the firewall lid and tighten with the three fastening nuts -6-  . → Tightening torque: 9.7 Nm (7.0 ftlb.)
    Fig 16: Securing Heater/Air-Conditioning Unit To Firewall

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Do not remove the stoppers for the air-conditioning lines until just before installing the expansion valve.

    Check foam parts for signs of damage. If in doubt, replace them.

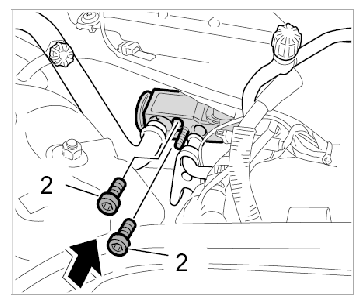

17. Install expansion valve and tighten with the two fastening screws -2-  , replace sealing rings for refrigerant lines and wet them with refrigerant. → Installing expansion valve → Tightening torque: 9 Nm (6.5 ftlb.)
    Fig 17: Installing Expansion Valve

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
18. Replace sealing rings for refrigerant lines and wet with refrigerant. Position refrigerant line and tighten with fastening screw -1-  . → M8: 14 Nm (10.5 ftlb.)

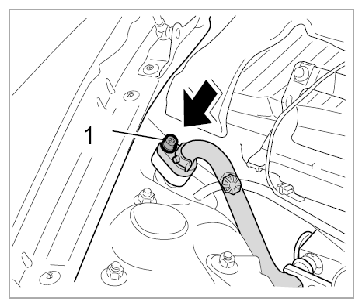

    Fig 18: Locating Refrigerant Lines Nut
