Removing and installing the front disc brake pads: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is essential to observe the following points when changing brake pads.

Use brake pads of the correct quality (in accordance with spare parts catalogue).
Replace vibration dampers each time the pads are changed.

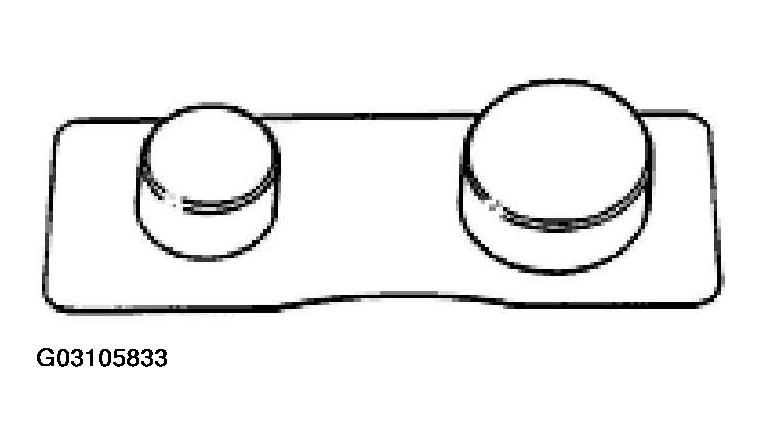

Fig 1: Identifying Vibration Dampers
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The vibration dampers (damper plates with integrated compensating masses) have an adhesive protective film. The protective film must be pulled off before installation.
The pad backing plates (rear side of the brake pads) must not be greased.
