Important notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The description below applies to left-hand drive vehicles with manual transmission or Tiptronic. On Tiptronic vehicles, start removal with No. 7 (stop light switch/area B). Pedal bearing axle (No. 13) is shorter because there is no clutch pedal lever. Refer to Fig 1 .

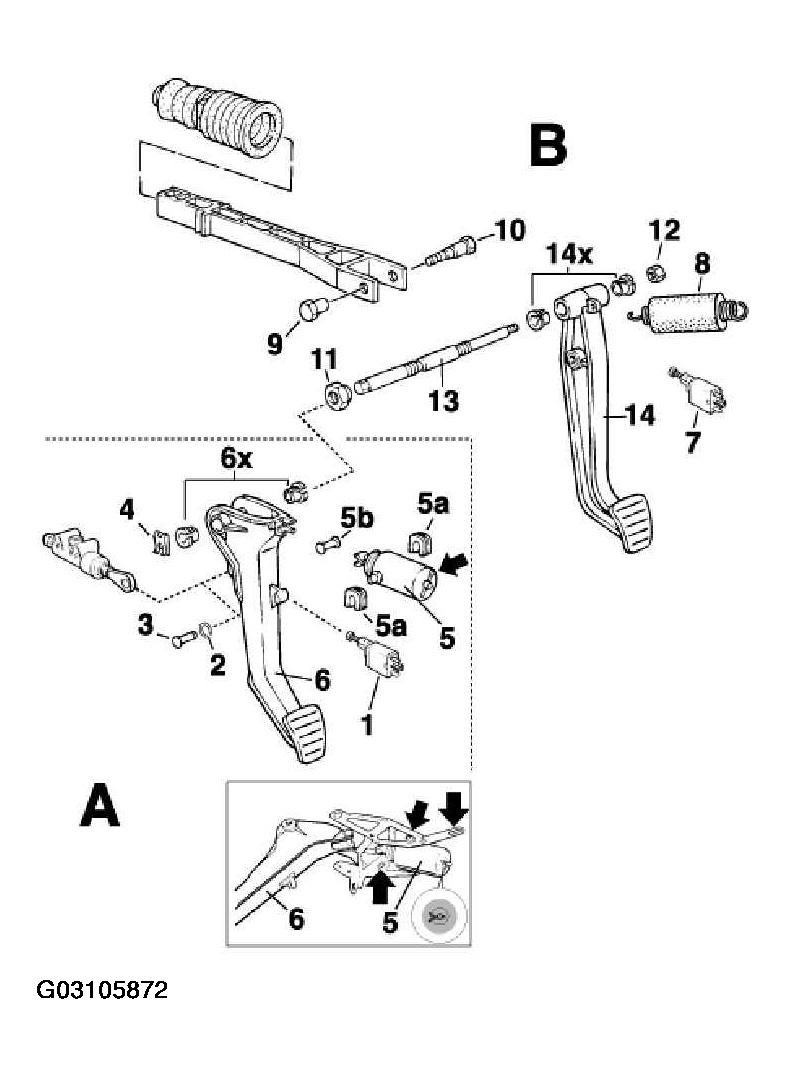

Fig 1: Exploded View Of Brake And Clutch Pedal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

On right-hand drive vehicles, the clutch pedal lever is located directly next to the brake pedal (separated by the steering outer tube in the case of left-hand drive vehicles).

Assembly/disassembly for right-hand drive vehicles is similar to the procedure for left-hand drive vehicles.

Before the start of disassembly work on the pedals, the clutch boost spring must be fixed with a cotter pin (arrow at No. 5, Fig 1 ) in the case of vehicles with manual transmission.

Important: secure the cotter pin (bend it over).

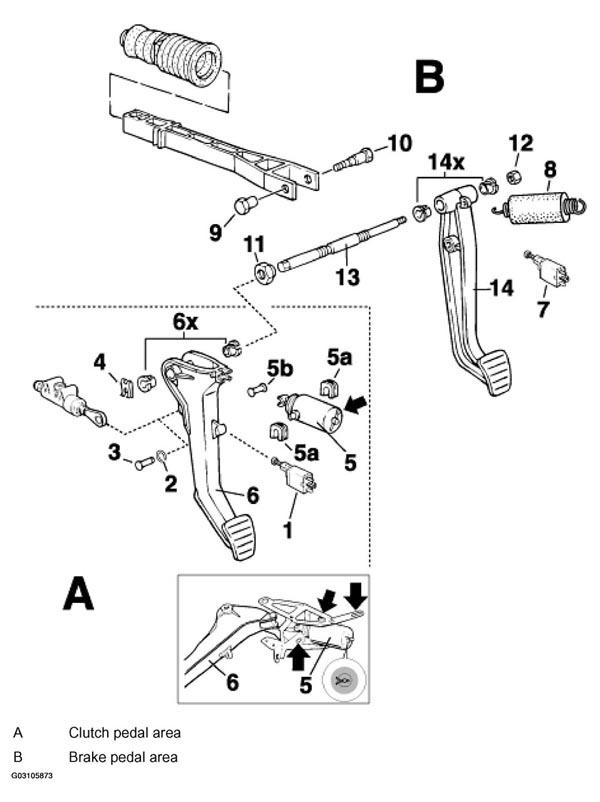

Fig 2: Exploded View Of Brake And Clutch Pedal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Clutch pedal area

B = Brake pedal area

CLUTCH PEDAL AREA COMPONENTS

⁽¹⁾ No.

Designation

Qty.

Removal

Installation

Switch

Release by turning 90°, and pull out of the installation opening

Before installation, pull operating plunger out of the switch as far as it will go

Retaining clip

Replace if necessary

Clamp

Replace

Boost spring with bracket

Secure boost spring with cotter pin (arrow at No. 5) Insert the cotter pin (diameter of 3 mm) into the assembly bore and bend over ends.
Then undo the three fastening nuts of the bracket (arrows) and remove the boost spring together with bracket and clutch pedal lever (No. 6)

Install the assembly consisting of bracket, boost spring and clutch pedal lever.
Ensure correct allocation when replacing the boost spring.⁽³⁾ Observe assembly and adjustment specification for the bracket (assembly instructions under Installation, step 4)

Boost spring bearing

Replace if necessary. It is important to note instructions regarding grease⁽³⁾

It is important to note instructions regarding grease⁽³⁾

Clutch pedal lever

Remove together with boost spring No. 5 and bracket

Bushings

Remain in the clutch pedal lever

Check, replace if necessary. Lubricate. Use specified grease⁽²⁾

⁽¹⁾	Refer to Fig 2 for component identification.

⁽²⁾	Lubricate the bushings of the clutch and brake pedals (6X and 14X) with "Optimol, Optitemp LG 2" grease, Part No.: 000.043.203.37 (delivery quantity: 80 g tube).

⁽³⁾	Please refer to CLUTCH BOOST SPRINGS: ALLOCATION AND GREASE SPECIFICATION . To see when lubrication of the boost spring bearing points is not permitted, please also refer to the assembly instructions for installation, steps 3.1 and 3.2 under step 3 .

BRAKE PEDAL AREA COMPONENTS

⁽¹⁾ No.

Designation

Qty.

Removal

Installation

Stop light switch

Release by turning 90°, and pull out of the installation opening

Adjust stop light switch if necessary; refer to CHECKING BRAKE LIGHT SWITCH SETTING

Return spring

Disengage at body

Fit a sleeve (protective sheath) on return springs without one

Threaded bushing

Tighten to 10 N.m (7.5 ftlb)

Lock nut

Tighten to 20 N.m (15 ftlb.)

Hexagon nut M8

Replace; tighten to 10 N.m (7.5 ftlb.)

Pedal bearing axle

Unscrew at hexagon

Grease in area of the bearing bushings 6X and 14X,⁽²⁾ and tighten to 8... 10 N.m (6.0... 7.5 ftlb.)

Brake pedal

Pull out; to do this, turn the brake pedal and/or push rod accordingly if necessary

14X

Bushings

Remain in the brake pedal

Check, replace if necessary. Lubricate. Use specified grease⁽²⁾

⁽¹⁾	Refer to Fig 2 for component identification.

⁽²⁾	Lubricate the bushings of the clutch and brake pedals (6X and 14X) with "Optimol, Optitemp LG 2" grease, Part No.: 000.043.203.37 (delivery quantity: 80 g tube). Any residues of the previous grease need not be removed.
