Adjusting the brake pushrod

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The brake pedal has no stop. Since, when the brake pushrod is correctly set, the brake pedal has no support possibility in its original position, the permanently set free play in the brake unit is guaranteed. As a result a pushrod play of approx. 1 mm is noticeable by manual actuation on the pedal plate of the brake pedal.

Adjusting the pushrod length changes the position of the brake pedal. To do this, undo the lock nut and turn the pushrod accordingly at the hexagon (arrow).

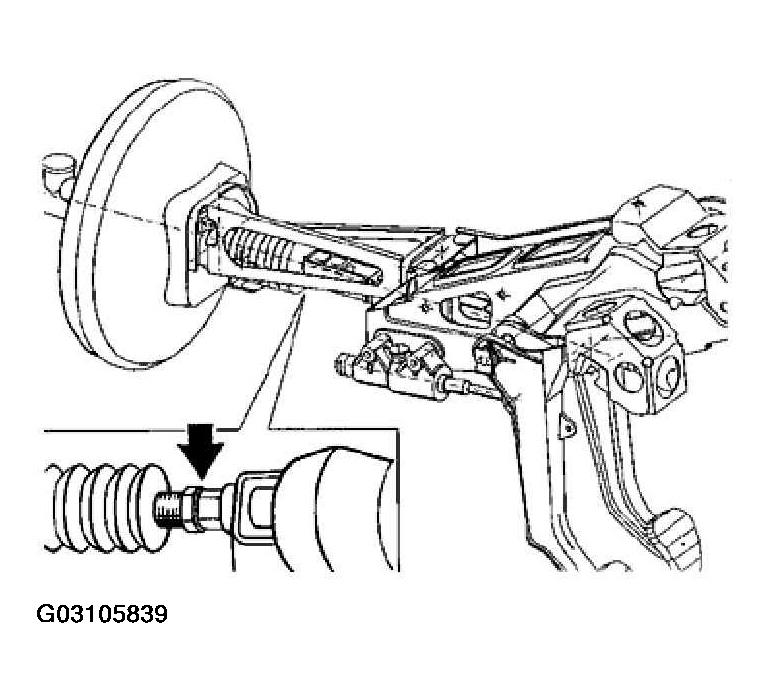

Fig 1: Identifying Hexagon Nut For Turning Pushrod

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The brake pushrod is correctly set if

Dimension X = 45 + 5 mm.

Perform measurement between the centre of the brake pedal plate and the accelerator.

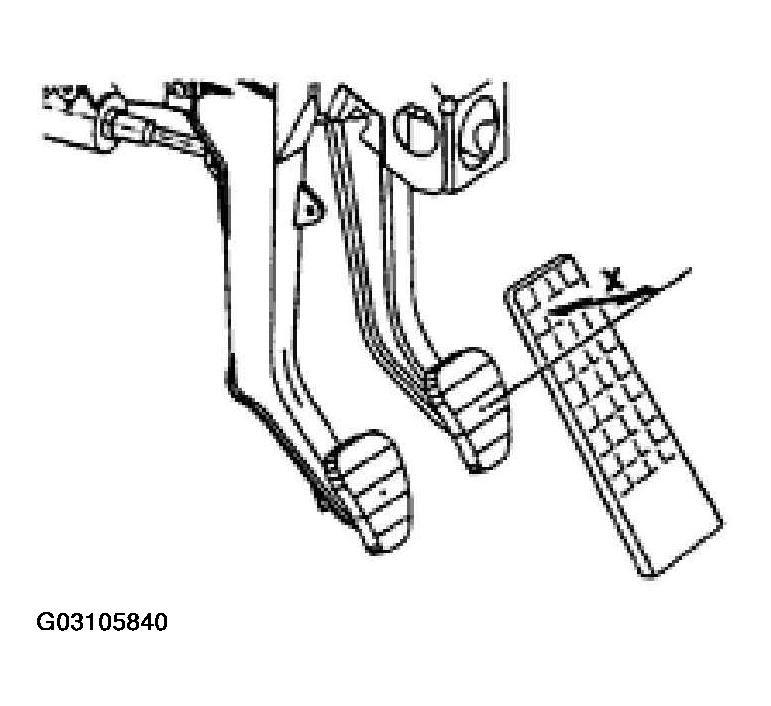

Fig 2: Identifying Dimension "x" Between Centre Of Brake Pedal Plate And Accelerator

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Check adjustment of the brake light switch if brake pushrod is adjusted.
