Removing and installing wiring harness: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect plug for transmission socket. To do this, turn plug anticlockwise and pull off.

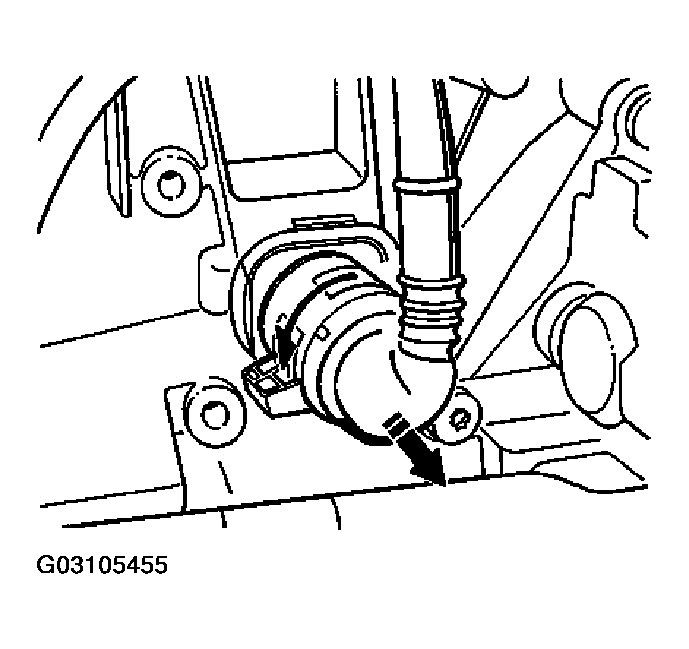

    Fig 1: Disconnecting Plug For Transmission Socket
    G03105455Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove retaining clip.

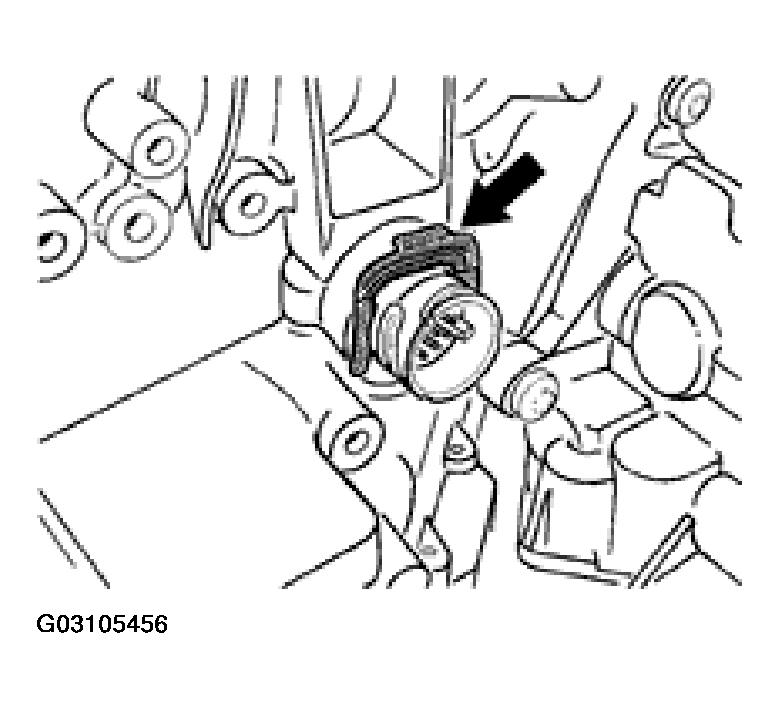

    Fig 2: Removing Retaining Clip For Transmission Socket
    G03105456Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove hydraulic control unit (see Removing and installing hydraulic control unit  ) and remove with wiring harness.
