Removing and installing wiring harness: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing rings for socket, coat thinly with Vaseline and insert wiring harness socket in correct position. Lug "A" must point towards the spur gear.

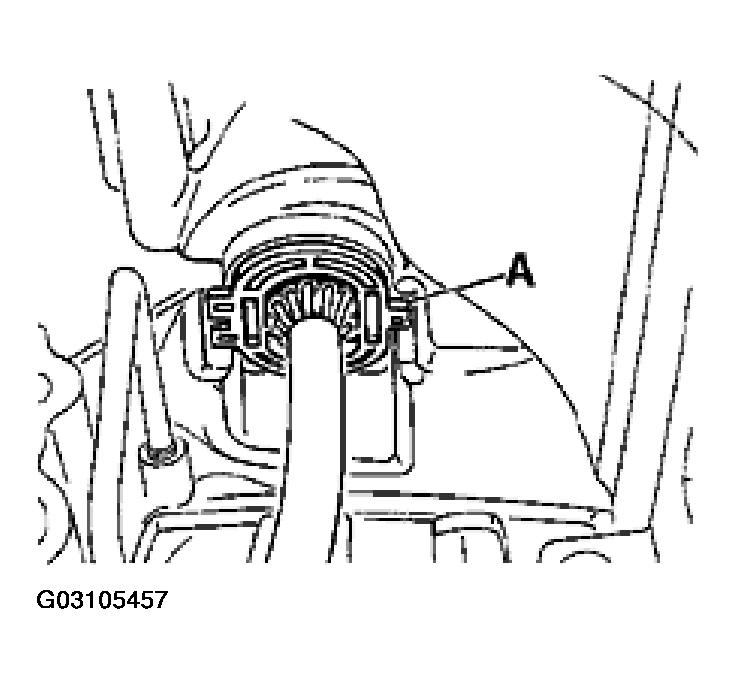

Fig 1: Identifying Lug Pointing Towards Spur Gear
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit the retaining clip.
Plug the plug into the socket in the correct position and lock by turning in clockwise direction.

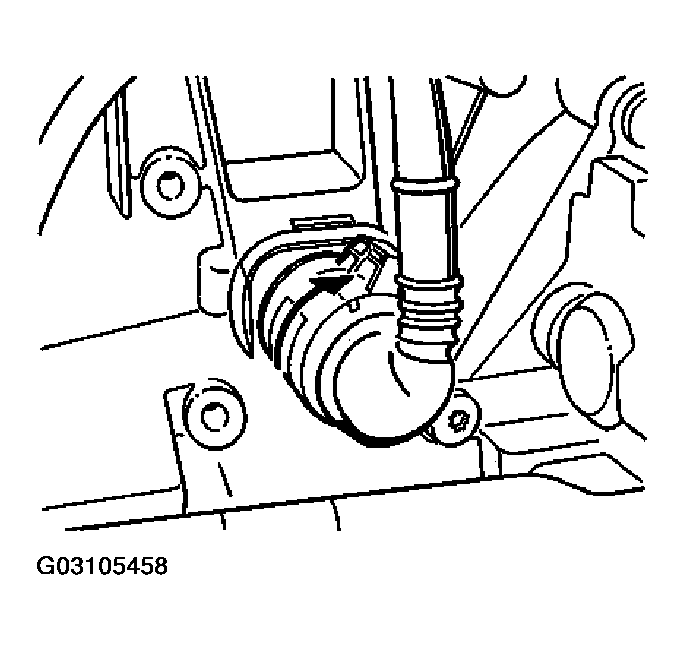

Fig 2: Locking Transmission Plug By Turning In Clockwise Direction
Courtesy of PORSCHE OF NORTH AMERICA, INC.
