Removing the electrohydraulic control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

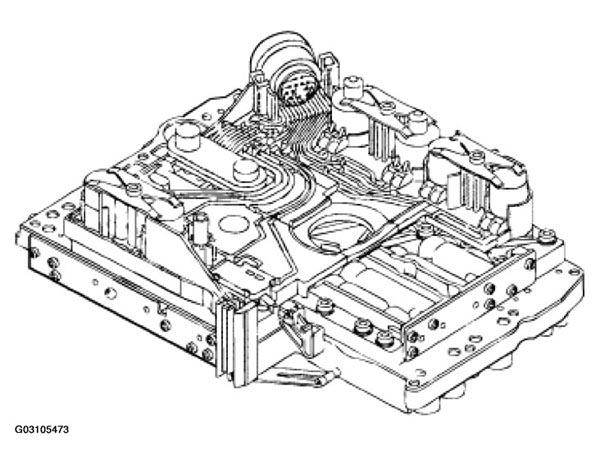

Fig 1: Identifying Electrohydraulic Control Unit (As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Do not let engine run with the ATF pan removed or without ATF filling.

Remove rear underside panel.
Remove cross member.

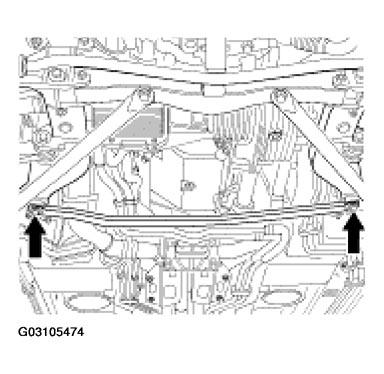

Fig 2: Removing Cross Member (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

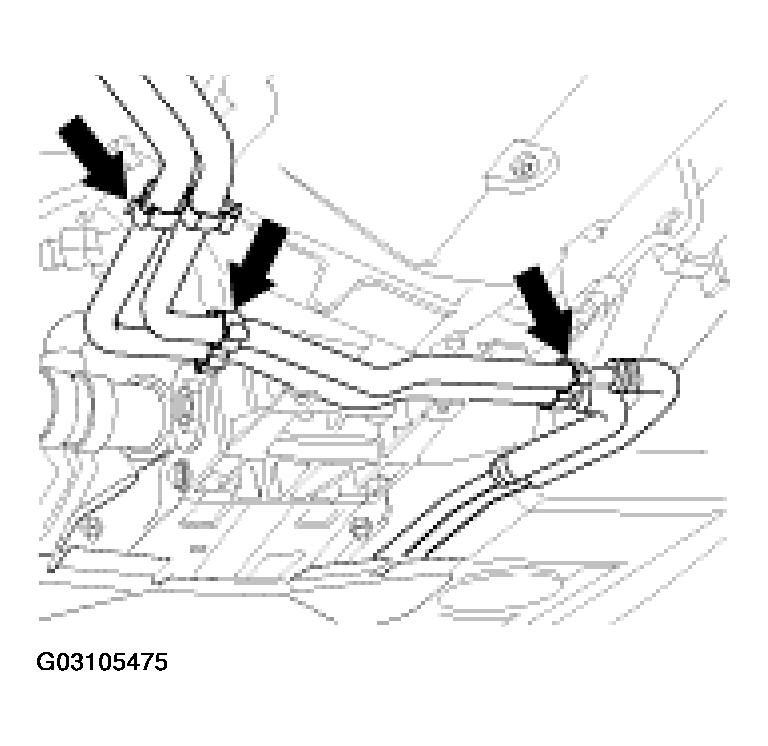

Disengage the coolant lines at the fastening points.

Fig 3: Disengaging Coolant Lines (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disengage cable on the retaining clips of the ATF pan.

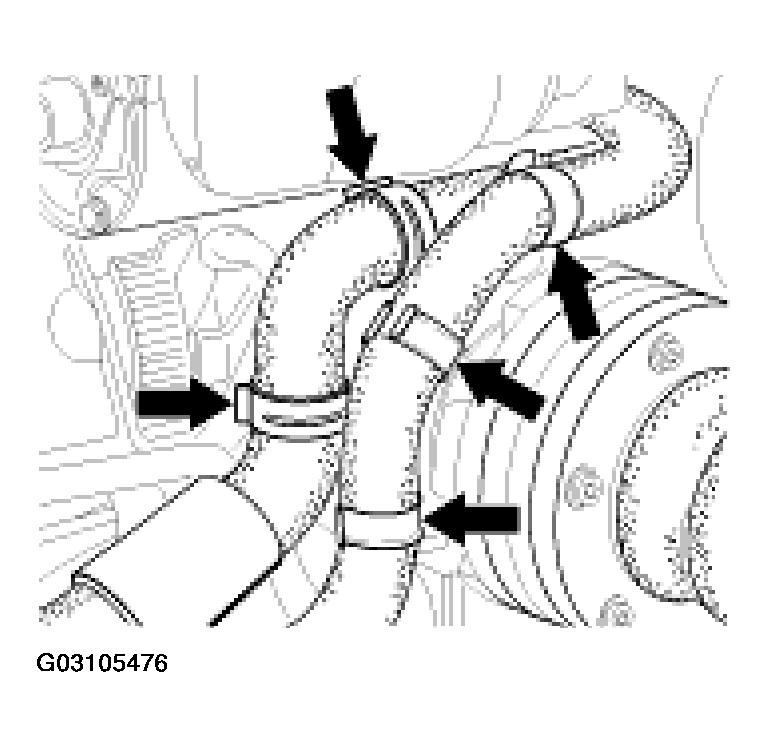

Disengage the coolant hoses in the area of the flanged shaft.

Fig 4: Disengaging Coolant Hoses In Flanged Shaft Area (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pull vacuum pipe off the switch-over valve.
Undo the left drive flange on the transmission side.

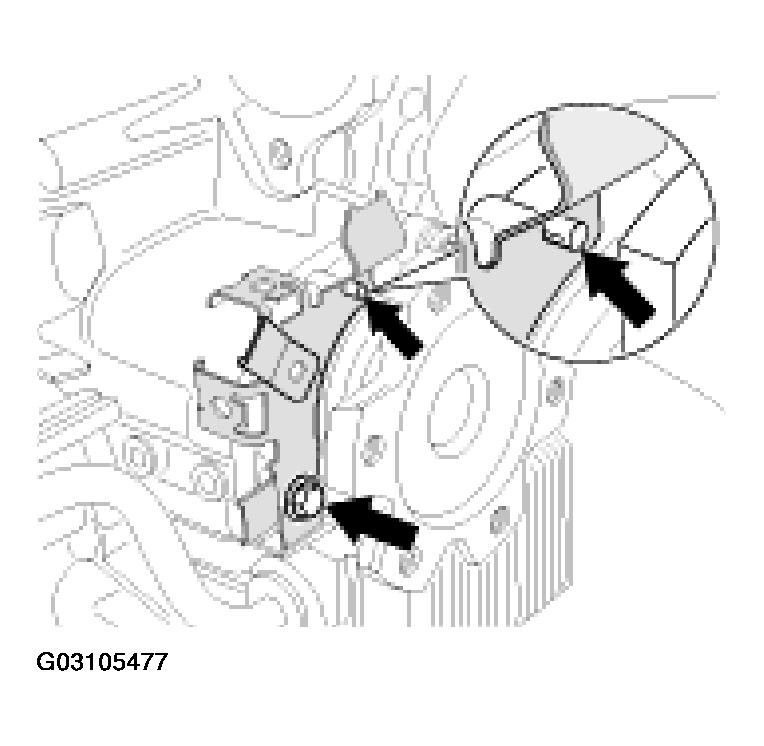

Remove the holders for the coolant hoses.

Fig 5: Removing Holders For Coolant Hoses (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

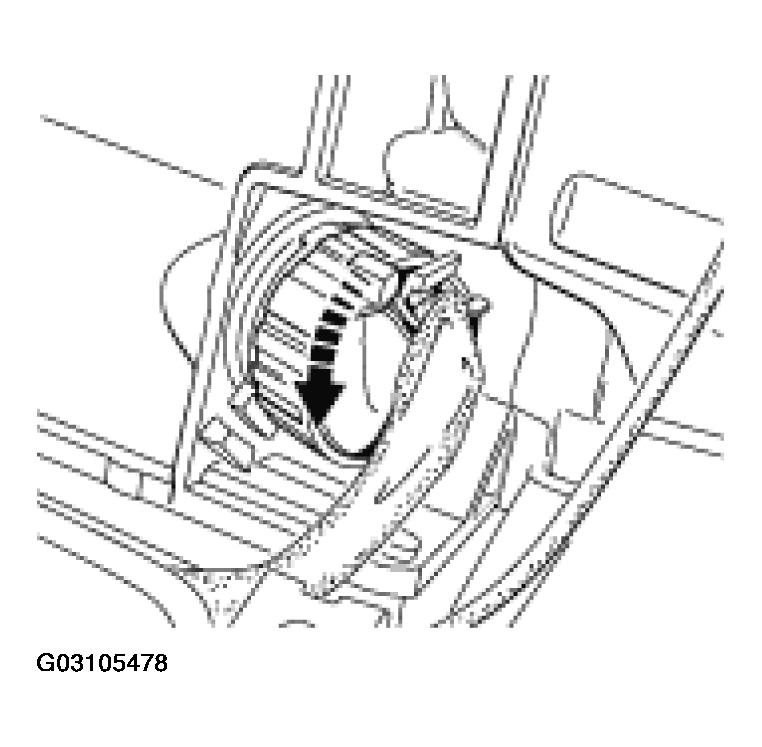

Unlock the plug connection by turning it to the left and pull out the plug.

Fig 6: Unlocking Transmission Plug Connection (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

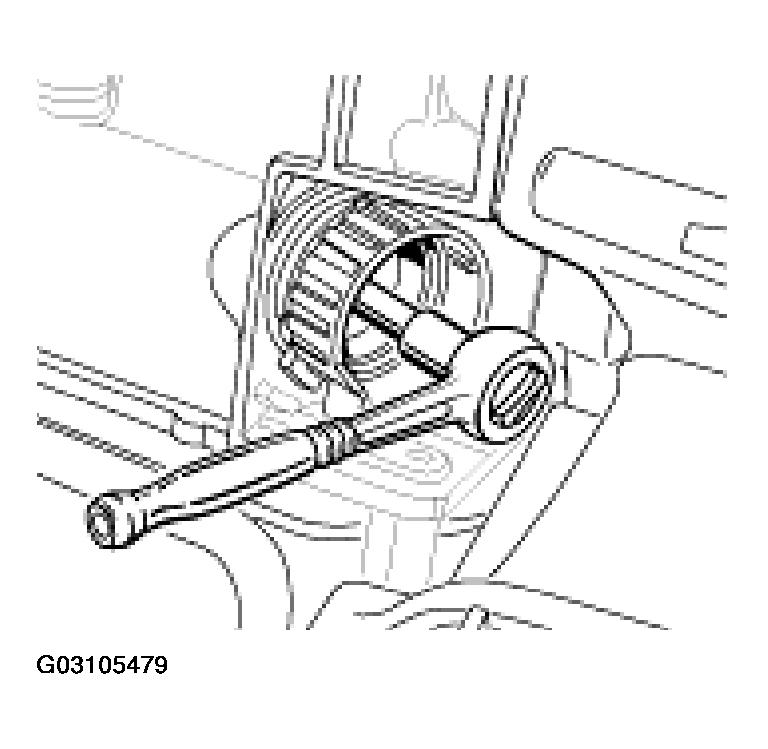

Unscrew the fastening screw for the pilot bushing using special tool assembly aid 9663 and pull out the bushing.

Fig 7: Unscrewing Fastening Screw For Pilot Bushing Using Special Tool (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place oil collection pan under the transmission.

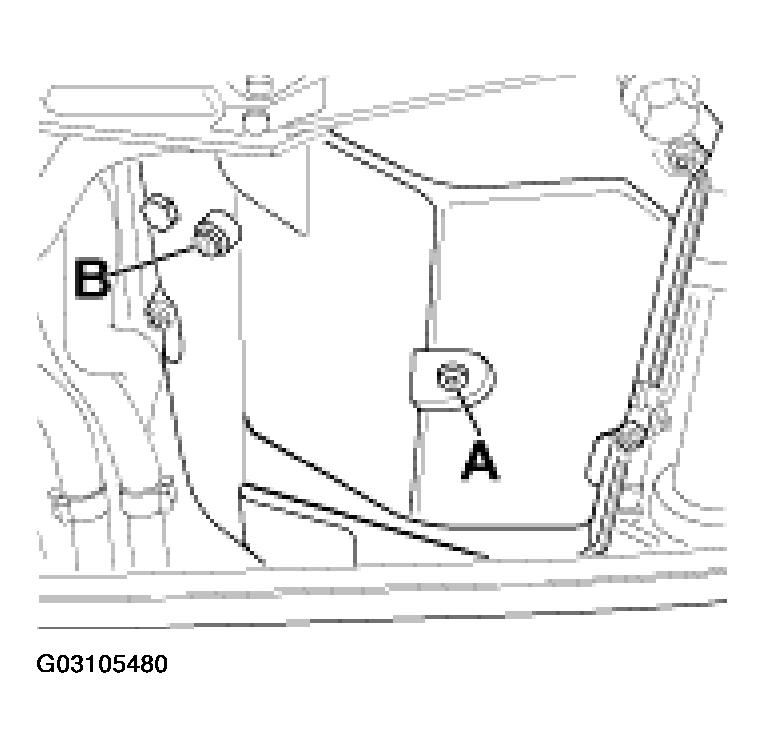

Unscrew drain screw -A- and drain ATF.

Fig 8: Locating Drain Screw (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove ATF pan (loosen screws crosswise).

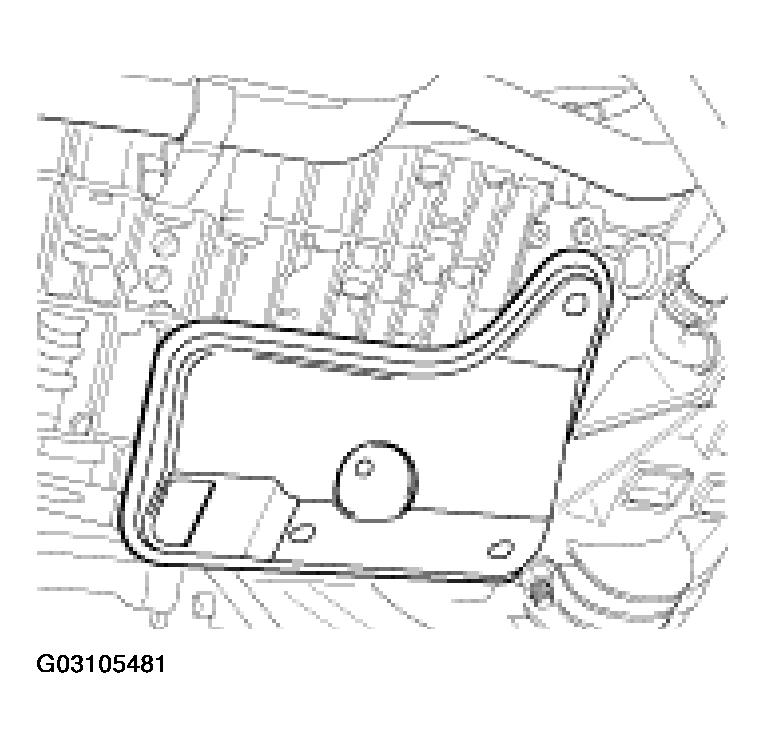

Remove ATF filter.

Fig 9: Removing ATF Filter (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place selector lever in position - P - and unscrew the fastening screws for the control unit.

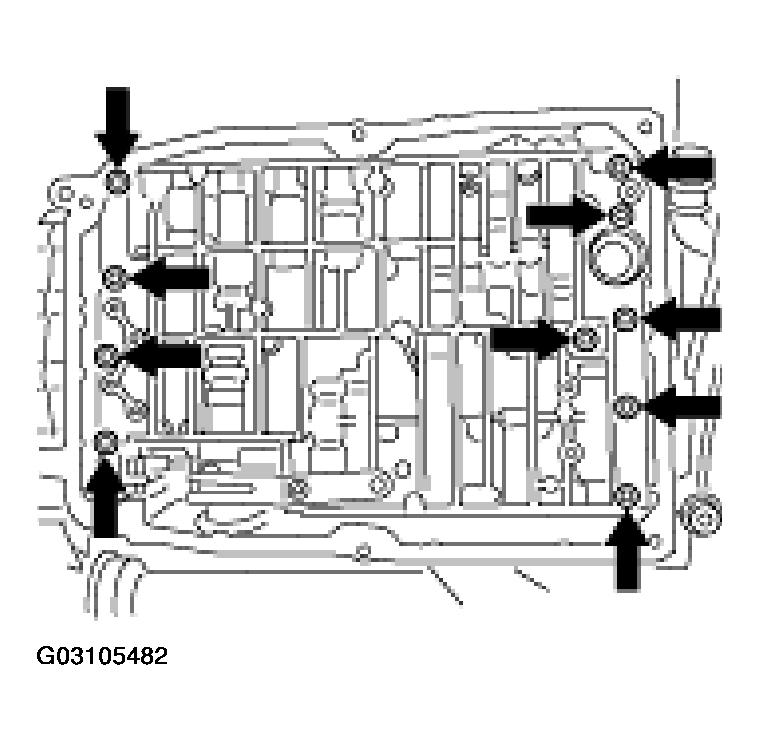

Fig 10: Unscrewing Fastening Screws For Control Unit (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
