Removing and installing ATF cooler: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clamp shut coolant hoses (flow and return sides) with special tool 3094.

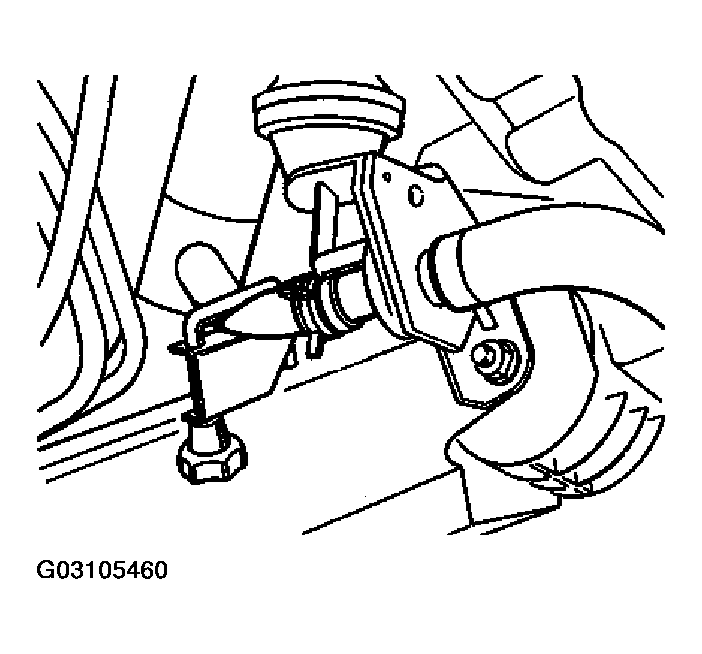

Fig 1: Clamping Shut Coolant Hoses (Flow Side)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Clamping Shut Coolant Hoses (Return Side)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Detach selector lever cable at the transmission lever and at the cooler bracket.

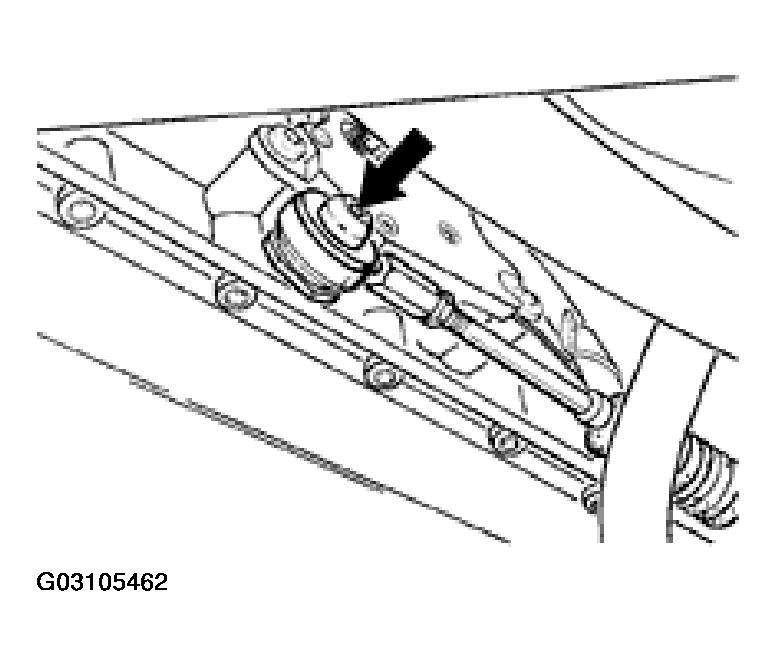

Fig 3: Detaching Selector Lever Cable At Transmission Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.

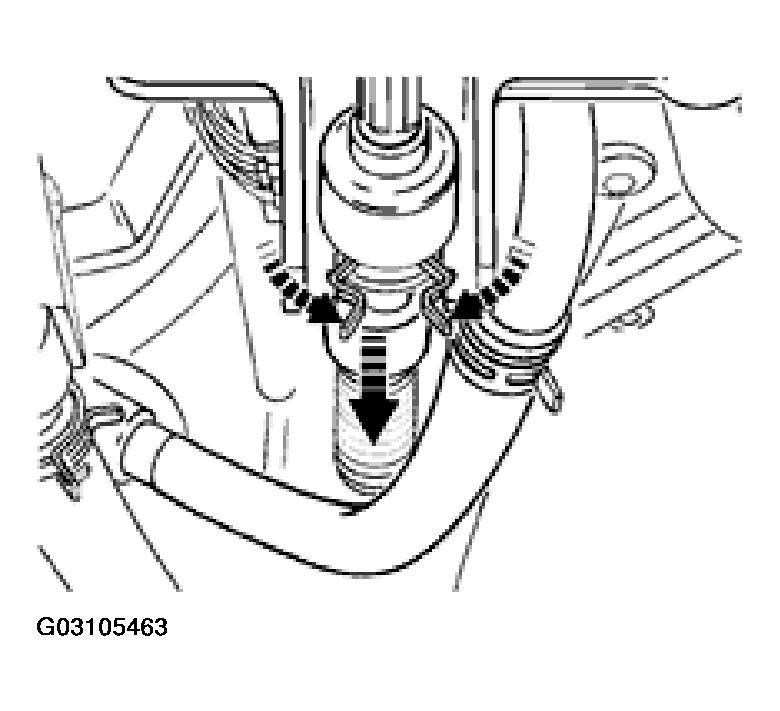

Fig 4: Detaching Selector Lever Cable At Cooler Bracket
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place oil collection pan under the transmission.
Unscrew fastening screws (4 ea.) for ATF cooler with a Torx T30 screwdriver. Use 1/4" tools to facilitate assembly.

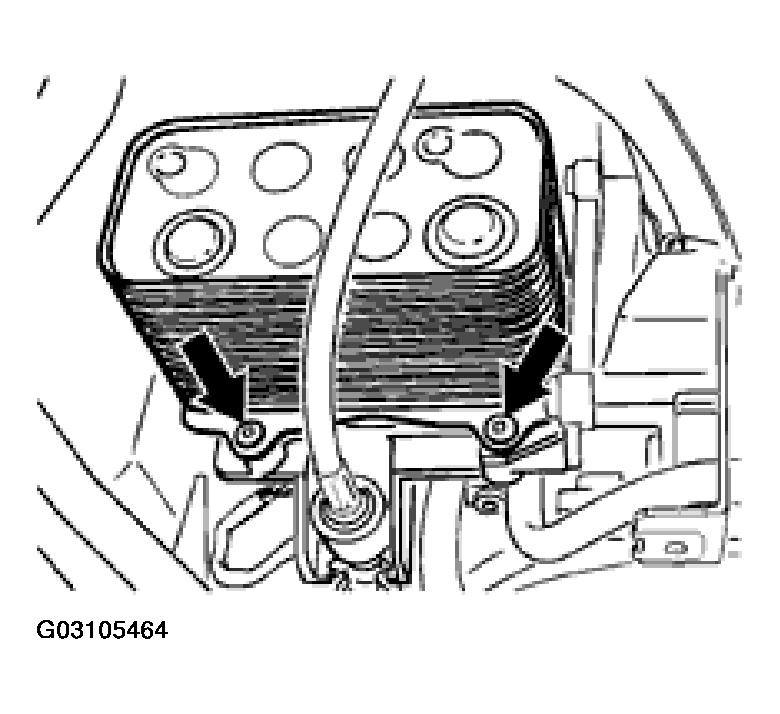

Fig 5: Unscrewing Fastening Screws For ATF Cooler
Courtesy of PORSCHE OF NORTH AMERICA, INC.
