Installing DME (DFI) Control Unit

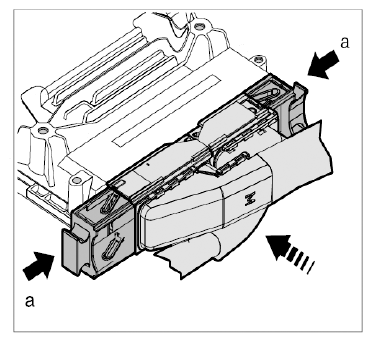

- Plug in and lock the two electric connectors on the control unit -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

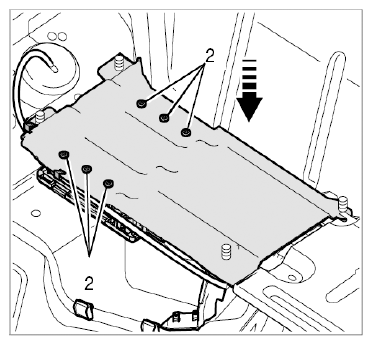

- Fit the control unit holder on the DFI control unit, position it and screw it down with the six fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

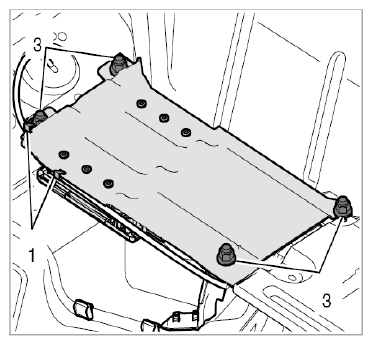

- Position the control unit holder into the four fastening bolts on the body and screw on the four fastening nuts -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Slide the two retaining clips -1-
for the PASM electric line onto the control unit holder.
