Installing Filler Neck

Information

Replace seal at filler neck.

1. Coat filler neck lightly with new engine oil in the assembly area in front of the seal.
2. Install filler neck.

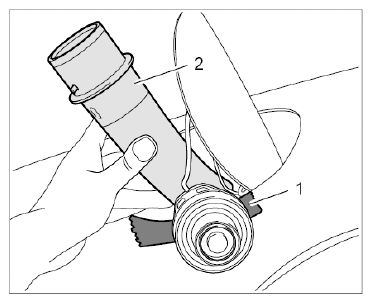

   Fig 1: Installing Filler Neck

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Guide filler neck -2-  with a new seal into the opening of the tank. Then turn the filler neck at the top and bottom alternately and place it in installation position.
3. Carrera 4 only:  Connect rapid-action coupling at the filler neck.

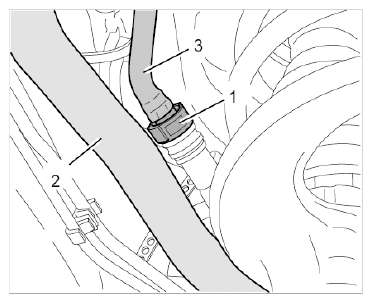

   Connect the rapid-action coupling -1-  on the breather pipe -3-  for the filler neck -2-  . The rapid-action coupling -1-  must lock with an audible click.

   Fig 2: Identifying Filler Neck (Carrera 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install the tank tray.
   Fig 3: Identifying Tank Tray

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Fit and clip in the tank tray -2-  .
   2. 4.2. Connect the overflow hose -3-  at the tank tray.
   3. 4.3. Connect the ground strap -1-  .
5. Install the holder.

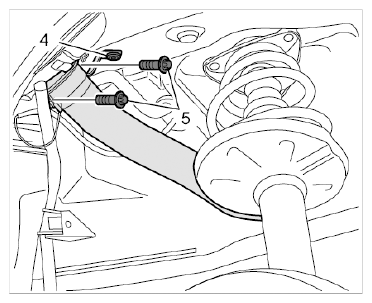

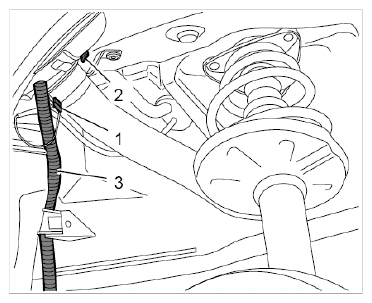

   Fig 4: Identifying Screws On Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Fit and tighten internal Torx screw (T30) M6 x 20 -4-  for the body (in the wheel arch).

      → Tightening torque: 10 Nm (7.5 ftlb.)

   2. 5.2. Fit and tighten two M6 x 20 hexagon-head bolts -5-  on the filler neck holder.

      → Tightening torque: 10 Nm (7.5 ftlb.)

6. Close the cap.
