Removing Coolant Temperature Sensor

  1. Remove crankcase vent line at the oil-filter housing.
    1. 1.1. Unscrew external Torx screw (E10, M6 x 20) -1-  at the oil-filter housing.
    2. 1.2. Release crankcase vent line -2-  at the locking ring and pull it off the engine ventilation cover on the cylinder head.
    3. 1.3. Pull crankcase vent line -3-  out of the oil-filter housing and set it aside.

      Place cloths underneath.

    4. 1.4. Replace O-rings.
    Fig 1: Identifying Crankcase/Vent Line Connection
    G09827879Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove coolant temperature sensor.
    1. 2.1. Release and disconnect the cable plug -4-  .
    2. 2.2. Loosen and unscrew coolant temperature sensor -5-  using the crow-foot wrench Nr.189-1  .
    3. 2.3. Replace sealing ring.

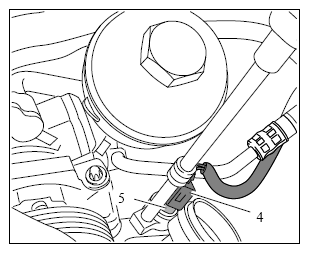

    Fig 2: Identifying Coolant Temperature Sensor
    G09827880Courtesy of PORSCHE CARS NORTH AMERICA, INC.
